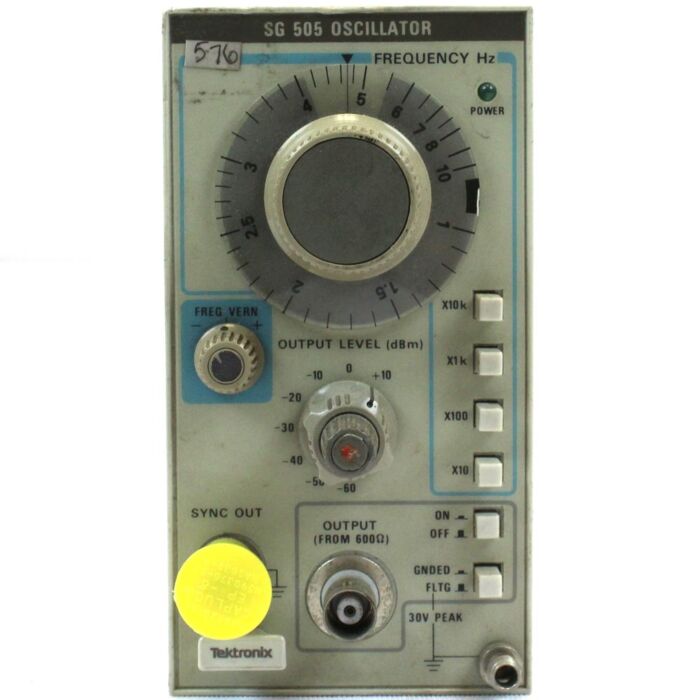

Used Tektronix SG505 Oscillator, 10 Hz-100Khz, plug-in
OSCILLATOR, 10 Hz-100Khz, plug-in

Order #: SG505-USED

Mfg #: SG505

Questions about availability or need help? Contact Us:

(800) 633-0561
$499.00

Used Tektronix SG505 Oscillator, 10 Hz-100Khz, plug-in

OSCILLATOR, 10 Hz-100Khz, plug-in

Order #: SG505-USED

Mfg #: SG505

$499.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks

Product Highlights

  • Frequency range: 10 Hz to 100 kHz nom. (typ. 9 Hz to 110 kHz) in four overlapping ranges
  • Frequency accuracy: 3% of dial reading
  • Output level: +10 dBm to -60 dBm into 600 Ω in eight 10 dB steps, plus variable control +2.2 dB to -10 dB from calibrated position
  • Output impedance: 600 Ω
  • Distortion: < 0.0008% (-102 dB) from 20 Hz to 20 kHz
  • Sync output: 200 mVRMS sine to 20 kHz, at least 120 mV @ 100 kHz; 1 kΩ source impedance
  • Topology: State-variable oscillator with N-FET (151-1021-00) based AGC. Range switches change capacitors and AGC time constants, main dial changes integrator resistor. Oscillator built from NE5534 amplifiers.
