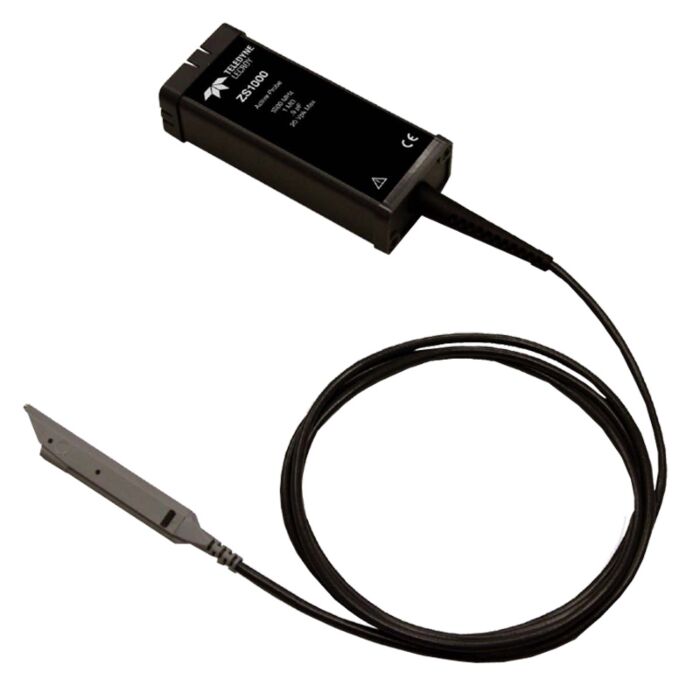

Lecroy ZS1000-QUADPAK USED FOR SALE
Order #: ZS1000-QUADPAK-USED
Mfg #: ZS1000-QUADPAK
Transcat is a Premier Supplier of Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.
- Easy to use, integrated with oscilloscope
- High Signal Fidelity to 1 GHz Bandwidth
- Low Circuit Loading - High Input impedance and low capacitance
- ± 8 V input dynamic range
- 1 MΩ input resistance
- 0.9 pF input capacitance
- ± 12 V offset range
- ProBus interface
- Wide variety of tips and leads
High Impedance Reduces Circuit Loading across Full Oscilloscope Bandwidth
Engineers must commonly probe high frequency signals with high signal fidelity. Typical passive probes with high input R and C provide good response at lower frequencies, but inappropriately load the circuit, and distort signals, at higher frequencies. The ZS Series features both high input R (1 MΩ) and low input C (0.9 pF) to reduce circuit Loading across the entire probe/oscilloscope bandwidth. The ZS1000 is ideal for 200-600 MHz oscilloscopes.
A Variety of Probe Tips for Varied Tasks
The small form factor and extensive range of standard and optional tip accessories for the ZS Series of probes ensures that this probe can meet any difficult probing challenge. Various flexible leads and clips, such as right-angle leads, Y-adapters, and pico hooks, are also available for probing test points that are spaced farther apart.
Innovative Grounding Provide the Highest Signal Fidelity
Keeping the ground loop short is critical to eliminating the effect of high inductance on the signal. The ZS Series of probes provides several grounding capabilities to offer the highest signal fidelity by eliminating the effect of that loop on the signal.
