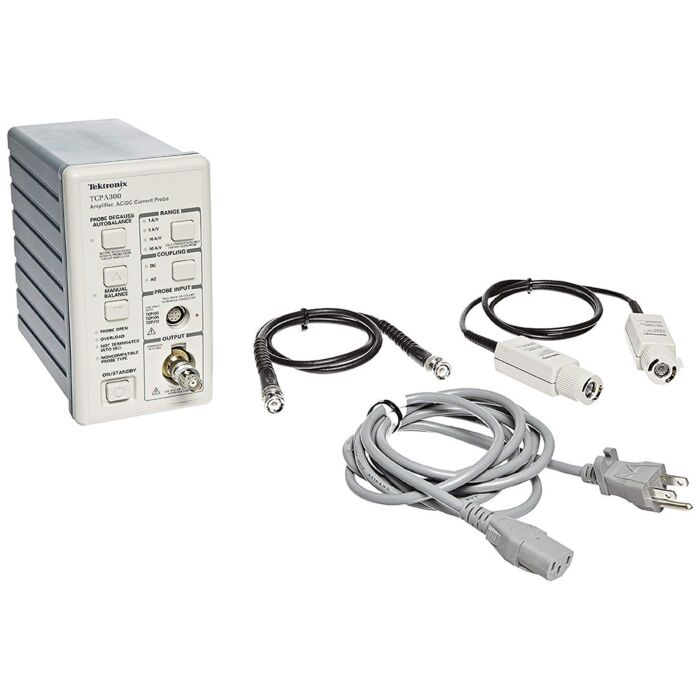

Used Tektronix TCPA300 Amplifier, AC/DC Current Probe, DC to 100 MHz

Product Highlights

The TCPA300 amplifier, when used with TCP312A, TCP305A, or TCP303 probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30 A, 50 A, and 150 A DC continuous. For even higher current levels, the TCPA400 amplifier with the TCP404XL current probe measures 500 A DC continuous and 750 A DC continuous, derated with duty cycle. Higher-frequency performance is available with the TCP312A w/TCPA300 providing =100 MHz bandwidth and a maximum current of 30 A DC.
