Overview
Product Highlights
Bandwidth
10 GHz
Range
dynamic range at 3.3 V peak-to-peak
DC offset range at +/- 16 V
maximum voltage at +/- 30 V
Input impedance
differential input R: 50 Kohm
differential input C: 0.21 pF
single-ended input R: 25 Kohm
single-ended input C: 0.35 pF
Connectivity
N2839A differential browser
N5380B differential SMA head
N5381B differential solder-in head
N5425B differential ZIF head (requires Keysight N5426A ZIF tip or N5451A long-wire ZIF tip)

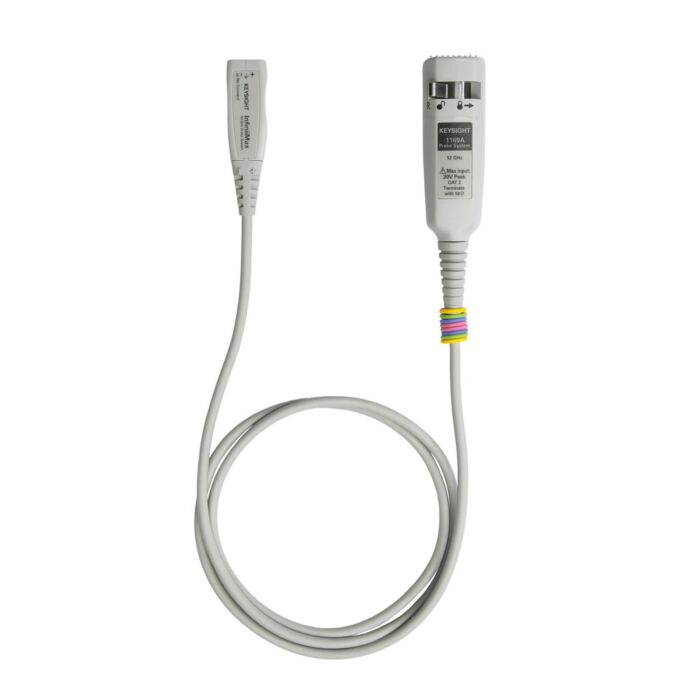

Use the Keysight InfiniiMax II Series 1168A probe amplifier with Infiniium Series oscilloscopes to get real-time bandwidth up to 10 GHz. The award winning InfiniiMax Series probing system supports even the most demanding mechanical access requirements without sacrificing performance.
