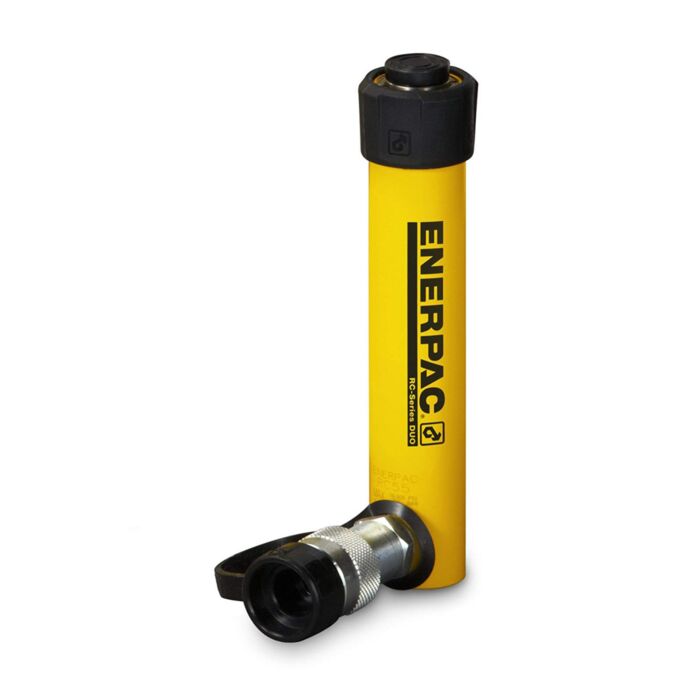

Enerpac RC-55 5 Ton Cylinder,S/A

Enerpac RC-55 5 Ton Cylinder, S/A

Order # RC-55

Mfg # 300600

call-regular 800-828-1470
$513.00
  • Overview
  • Technical Resources
  • Specifications

Enerpac RC-55 5 Ton Cylinder, S/A

Order # RC-55 | Mfg # 300600
$513.00

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Unique GR2 Bearing Design, reduces wear, extending life
  • Base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending

Technical Resources

Enerpac RC Series Datasheet

Specifications

Cylinder capacity 5 tons (4.9 maximum)
Stroke length 5.00 inches
Effective area 0.99 square inches
Oil capacity 4.97 cubic inches
Cylinder bore diameter 1.13 inches
Collapsed height 8.50 inches
Extended height 13.50 inches
Outside diameter 1.50 inches
Weight 4.1 lb.
