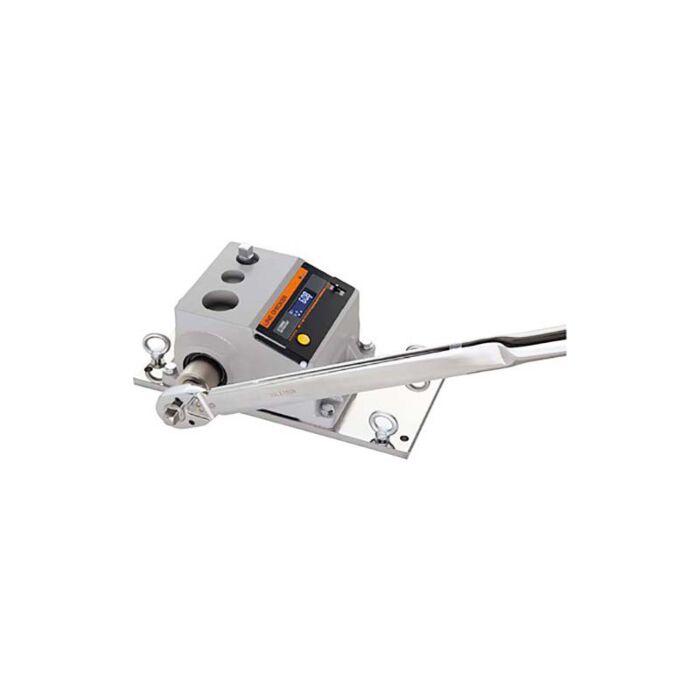

Tohnichi LC1000N3-G
Torque Wrench Line Checker 50-1000Nm,500-8800lbf.in

Order #: LC1000N3-G

Mfg #: LC1000N3-G

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $5,512.16 Regular Price $5,864.00

Tohnichi LC1000N3-G

Torque Wrench Line Checker 50-1000Nm,500-8800lbf.in

Order #: LC1000N3-G

Mfg #: LC1000N3-G

Special Price $5,512.16 Regular Price $5,864.00
Availability: Ships in 3-4 weeks

Product Highlights

  • Different colored LCD display visibly notifies judgment results.
  • Wide measurement range, reasonably priced, compact and high accuracy.
  • Can read actual running torque (Patented).
  • Built-in statistical processing functions.
  • Statistical processing functions automatically calculate sample numbers and maximum, minimum and mean values.
  • Hex adapters can be combined to test different sized open-end torque wrenches.
  • Power source AC100V-240V±10% to cover international use.
  • Battery pack is available as an option.
  • Support use in the EU.
  • With CE marking.
  • We have experience manufacturing products with American units of measurement (lbf, in, etc.) for Japan's aircraft manufacturing industry and for export to the U.S., and products with metric units of measurement (kgf, cm, etc.) for export to other parts of the world.
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Accuracy ± 1%+1digit
MODEL LC20N3-G LC200N3-G LC1000N3-G LC1400N3-G
TORQUE RANGE
[cN · m]
PEAK 50.0~99.8 100~999 1000~2000
1 DIGIT 0.2 1 10
RUN (Min~Max) 50.0~2000.0
1 DIGIT 0.2
TORQUE RANGE
[N · m]
PEAK 0.500~0.998 1.00~9.99 10.0~20.0 5.00~9.98 10.0~99.9 100~200 50.0~99.9 100~1000 100~999 1000~1400 -
1 DIGIT 0.002 0.01 0.1 0.02 0.1 1 0.1 1 1 10 -
RUN (Min~Max) 0.500~20.000 5.00~200.00 50.0~1000.0 100.0~1400.0 -
1 DIGIT 0.002 0.02 0.1 0.2 -
TORQUE RANGE
[kgf · cm]
PEAK 5.0~9.98 10.0~99.9 10~200 50.0~99.8 100~999 1000~2000
1 DIGIT 0.02 0.1 1 0.2 1 10
RUN (Min~Max) 5.0~200.0 50.0~2000.0
1 DIGIT 0.02 0.2
TORQUE RANGE
[kgf · m]
PEAK   5.0~9.99 10.0~100.0 10.0~99.9 100~140 -
1 DIGIT 0.01 0.1 0.1 1 -
RUN (Min~Max) 5.0~100.0 10.0~140.0 -
1 DIGIT 0.01 0.02 -
TORQUE RANGE
[lbf · in]
PEAK 5.0~9.98 10.0~99.9 100~174 50.0~99.8 100~999 100~1740 500~999 1000~8800 900~998 1000~9990 10000~12000
1 DIGIT 0.02 0.1 1 0.2 1 10 1 10 2 10 100
RUN (Min~Max) 5.0~174.0 50.0~174.0 500~8800 900~12000
1 DIGIT 0.02 0.2 1 2
TORQUE RANGE
[lbf · ft]
PEAK   4.00~9.98 10.0~99.9 100~140 36.8~99.9 100~735 75.0~99.8 100~1000
1 DIGIT 0.02 0.1 1 0.1 1 0.2 1
RUN (Min~Max) 4.00~140.00 36.8~735.0 75.0~1000.0
1 DIGIT 0.02 0.1 0.2
INLET DRIVE ?a[mm] 9.53 12.7 25.4
DIMENSION
[mm]
OVERALL LENGTH 278 500
OVERALL WIDTH 160 290 312
OVERALL HEIGHT 167 186
WEIGHT [kg] 10.5 34 39
ACCESSORIES
[mm]
SOCKET ADAPTER ?9.5(MALE) - ?6.35(FEMALE) No.270 ?12.7(MALE) - ?9.53(FEMALE) No.272 ?19.05(MALE) - ?12.7(FEMALE) No.274
?25.4(MALE) - ?19.05(FEMALE) No.276
HEXAGON HEAD ADAPTER ?9.53 - W6.35 ?12.7 - 8,10,12,13,14,17,19,22 -
For torque driver No.280
?9.53 - W8,10,12,13,14,17 No.282
