Gedore Tools DMZ 100

Product Highlights

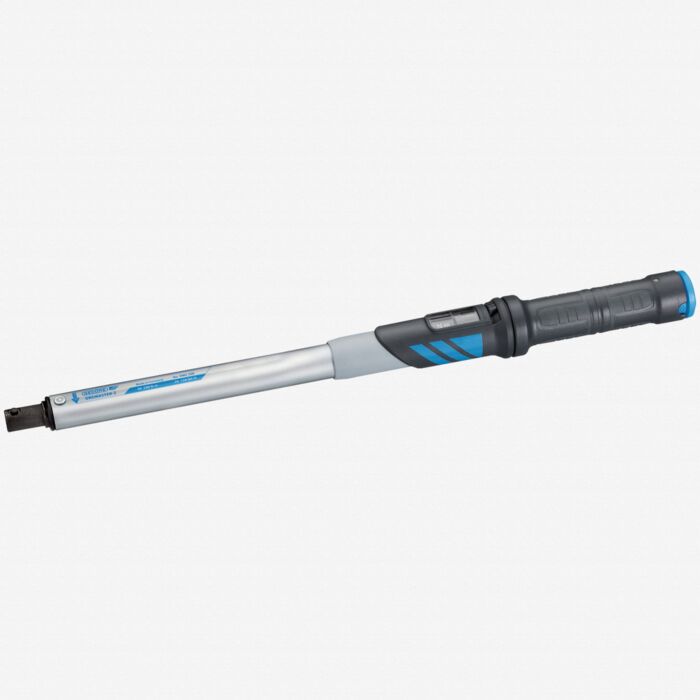

Gedore DMZ 100 Torque wrench DREMASTER Z 16, 20-100 Nm

Controlled screw tightening in the most common range of 20 - 850 Nm / 15 - 630 ft-lbs. (guide for screws M7-10.9 to M24-8.8, M30-5.6)

Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
• For controlled bi-directional tightening
• Sturdy, satin chrome-plated tubular steel construction, with phosphated spigot end (16 mm or 22 mm) and high-grade plastic parts
• Ergonomically shaped, 2-component plastic grip with calibration aid
• Change-over between Nm main scale and ft-lbs. ancillary scale to avoid reading errors when setting the torque wanted.
• With micrometer scale for main Nm scale for setting interim values
• Release system triggers a tactile and audible signal
• Ergonomic system for torque adjustment with reference symbol
• Provision for rapid setting with hexagon allen key, not included
• Secured adjusting/setting system
• Factory depth gauge: 32 mm (16 mm) or 56 mm (22 mm)
• Operation only with end fittings with standardised depth gauge - otherwise inaccuracies may arise.
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
