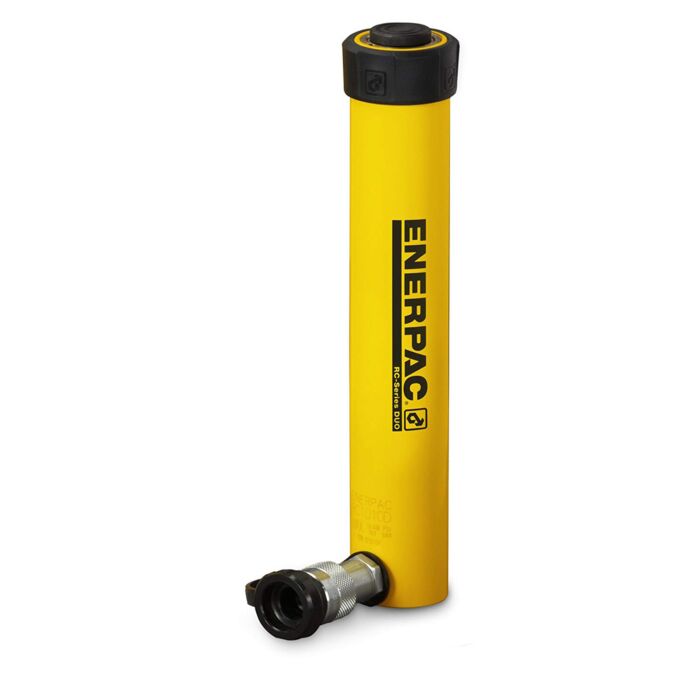

Enerpac RC251
SA Hydraulic Cylinder,25.8 Ton 1.0"Stroke,General Purpose

Order #: RC251

Mfg #: 301287

Questions about availability or need help? Contact Us:

(800) 633-0561
$908.00

Enerpac RC251

SA Hydraulic Cylinder,25.8 Ton 1.0"Stroke,General Purpose

Order #: RC251

Mfg #: 301287

$908.00
Availability:
In stock

Product Highlights

  • Unique GR2 Bearing Design, reduces wear, extending life
  • Base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Cylinder capacity25 tons (25.8 maximum)
Stroke length1.00 inch
Effective area5.16 square inches
Oil capacity5.16 cubic inches
Cylinder bore diameter2.56 inches
Collapsed height5.50 inches
Extended height6.50 inches
Outside diameter3.38 inches
Weight13 lb.
