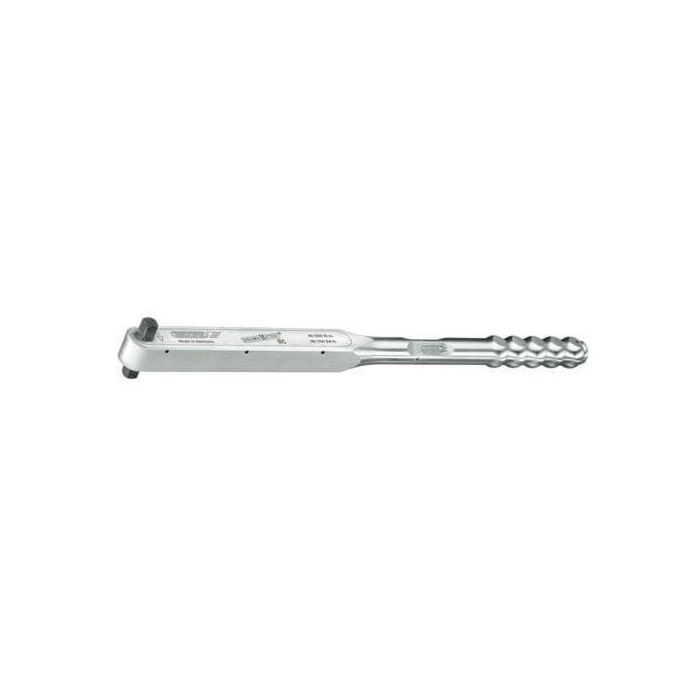

Gedore Tools 8578-00
Torque Wrench DREMOMETER BCL 1/2",40-200Nm
Order #: 7683670
Mfg #: 7683670
$1,304.90
$1,304.90
Availability: Ships in 3-4 weeks
Product Highlights
- Controlled screw tightening in the range 6 - 3000 N·m
- For use in almost all industrial manufacturing areas Features:
- Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- Automatic short-path actuation with tactile impulse and audible signal
- Dual scale (except for type E-F) with corresponding scale graduation (see table)
- Type B, BC, C with push-button release
- Type BCK with integrated ratchet function Technical advantage/Function:
- Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches) Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a unique lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- Single- and double-square drive for controlled bi-directional tightening
- Drive connector square (male): 1/2 inch
- Drive connector square (male) nominal size: 12.5 mm
- Range of work / measurement N.m (min/max): 40-200 N·m
- Range of work / measurement lbf.ft (min/max): 30-150 lbf·ft
- Scale divisions: 5 N·m / 5 lbf·ft
- Distance middle of handgrip to pivot point: 463 mm
- Height: 30 mm
- Distance housing - square drive: 17.5 mm
- Length (L, L1): 551 mm
