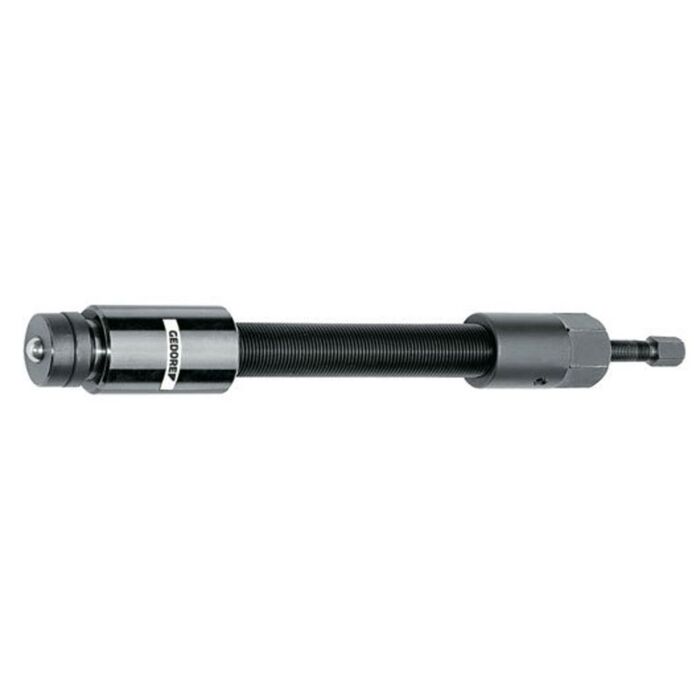

Gedore Tools 1.06/HSP2

Hydraulic Pressure Spindle 12 T

Order #: 8116290

Mfg #: 8116290

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $680.00 Regular Price $691.58

Gedore Tools 1.06/HSP2

Hydraulic Pressure Spindle 12 T

Order #: 8116290

Mfg #: 8116290

Special Price $680.00 Regular Price $691.58
Availability: Ships in 2-3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Set up for a pressure of 10 t, 12 t or 15 t Preparation for use: 1. Before using, check whether the pressure spindle is screwed far enough out of the cap, so that the pressure pad is in the initial position in the hydraulic cylinder. 2. Unscrew the cap from the spindle body. For this purpose, first slacken off the grub screw. 3. Screw the spindle body from beneath into the cross piece of the puller until the body protrudes approx. 60 mm from the cross piece. 4. Screw the cap onto the spindle body until the stop, and then fix it in position by turning in the grub screw. Use and operation: e.g. HSP3 5. Place the puller into position and pre-tension the spindle body using a size 41 mm wrench. 6. Screw the pressure spindle size 17 mm into the cap. The hydraulic effect will come into use. The stroke of the pressure pad in the hydraulic cylinder is max. 12 mm. The workpiece that has been loosened by the hydraulic force may be pulled off completely by turning the spindle body with the cap size 41 mm. 7. Following its use, the pressure spindle (size 17 mm) is turned back into its initial position and the pressure pad pushed into the hydraulic cylinder.
  • Spindle size (Thread x Length): 3/4 inch
  • Height of head (a, a1, b, h, L2, t): 80 mm
  • Usable spindle length: 205 mm
  • Length (L, L1): 420 mm
  • Width Across Flat / Actuating Hexagon: 12 mm
  • Width Across Flat (mm) 2: 36 mm
  • Stroke: 12
  • Pressure t: 12 t
  • Pressure N.m: 19 N
