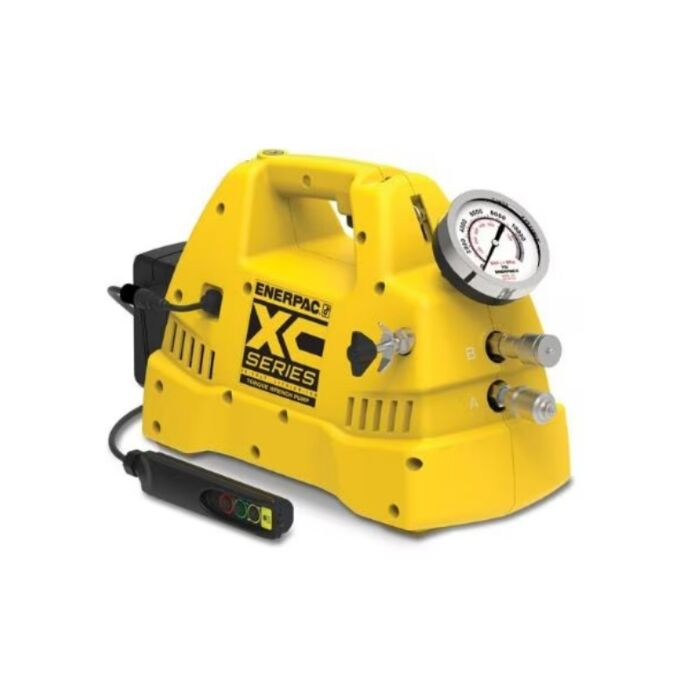

Enerpac XC1502TB Cordless Torque Wrench Pump, Batteries - 115V Charger
Cordless Hydraulic Torque Wrench Pump, 120 in3 Usable Oil
Order #: XC1502TB
Mfg #: XC1502TB
$8,213.00
Availability: Call for Availability
Product Highlights
- Portable battery pump for torque applications
- This portable pump is perfect for remote locations, sites that do not have access to power or where trip hazards are a concern.
- The interactive pendant allows the user to set and clear pressure and operate in manual or auto-cycle mode.
- The pump has an easily accessible user adjustable valve for precise pressure control.
- Ideal for maintenance bolting applications requiring portability and convenience.
- Interactive pendant provides visual and vibratory feedback of pump operation.
- Superior run-time with 5Ah, 28V battery.
- 20-foot detachable pendant control.
- 4-inch glycerin-filled gauge for easy viewing.
- Bladder reservoir allows pump to be used in any position.
- High-strength fiberglass reinforced composite housing provides superior durability in demanding job site environments.
- Integrated handle and carrying strap for portability.
- The following wrenches are ideal for use with the XC Cordless Torque Wrench Pump: S1500X, W2000X, S3000X, W4000X. Larger wrenches will work with the pump, battery run time and application speed will be impacted.
- Fasteners torqued on one charge: 32 fasteners torqued with an S3000 torque wrench on a 2 3/8" Nut AF, 1 1/2" Stud, at 4800 PSI and 1500 Ft. Lbs.
- Fasteners torqued on one charge: 52 fasteners torqued with a W2000 torque wrench on a 2 3/8" Nut AF, 1 1/2" Stud, at 5000 PSI and 1500 Ft. Lbs.
- The weight includes oil, no battery (battery weight: 2.4 lbs).
Specifications
Maximum Operating Pressure (psi) | 10,000 |
Pump Type | Cordless Pump Kit with 2 batteries and 115V charger |
For Use With Torque Wrenches | S1500X, S3000X, W2000X, W4000X, RSL1500, RSL3000, RSL5000, DSX1500, DSX3000, HMT1500, HMT3500, HMT7500 |
Reservoir Capacity (in3) | 120 |
Usable Oil Capacity (in3) | 120 |
Maximum Flow at Rated Pressure | 15 in3/min |
Output Flow Rate (in3/min) No Load | 125 |
Output Flow Rate (in3/min) 2000 psi | 30 |
Output Flow Rate (in3/min) 10000 psi | 15 |
Motor Size (hp) | 0.5 |
Duty Cycle | Intermittent |
Power Source | Battery |
Pump Control | Pendant |
Charger Voltage (VAC) | 115 |
Weight (lbs) | 26.6 |
