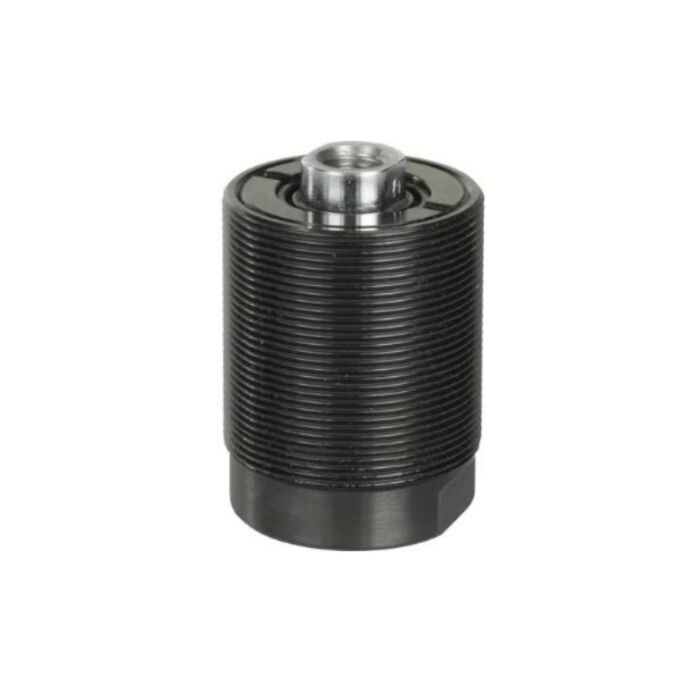

Enerpac CST18131 Hydraulic Cylinder, Threaded Body, 3950 lbs, Single-Acting
Order #
CST18131
|
Mfg #
CST18131
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
3950 lbs Capacity,0.51 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows fine positioning and easy installation
- Internal plunger wipers allow maintenance-free, high-cycle performance
- Center-tapped plungers will hold workpiece contact buttons
- Single-acting models with spring return simplify hydraulic tubing requirements
- Double-acting models are recommended for high-cycle applications
Specifications
| Maximum Operating Pressure (psi) |
5,000 |
| Maximum Cylinder Capacity Advance (lbs) |
3,950 |
| Stroke (in) |
0.51 |
| Return Type |
Single-Acting, Spring Return |
| Plunger Type |
Solid |
| Material |
Steel |
| Cylinder Effective Area Advance (in2) |
0.79 |
| Cylinder Effective Area Retract (in2) |
0.46 |
| Oil Capacity Retract (in3) |
0.4 |
| Weight (lbs) |
1.2 |
