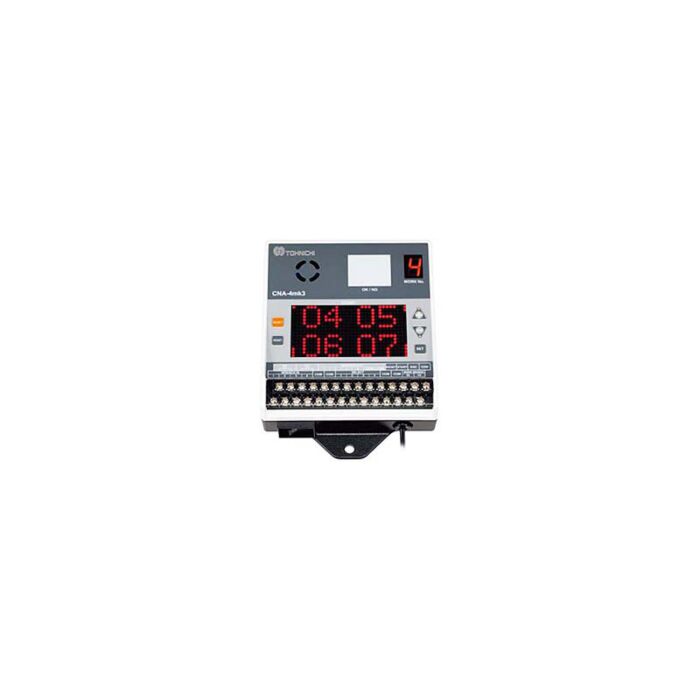

Tohnichi CNA-4MK3 Poka Patrol Count Checker

Overview

Count checker to prevent missed tightening.
Can be connected to LS (Limit Switch) torque wrenches for count management.
Up to four LS torque wrenches can be connected, and each can be set with a different number of bolts to tighten. So up to four operators can perform tightening tasks at the same time.
From one unit, the numbers of four different types of bolts to be tightened can be set.
Bolt counting can be set 0-99 pcs for each torque wrench, and count down upon receiving a signal.
OK/NG judgement signal can be transferred to external device through relay output.
Connected with LS type torque wrenches (sold separately), CNA4-mk3 establishes error-proofing system.

Tohnichi CNA-4MK3 Operating Instructions
Tohnichi CNA-4MK3 Brochure

Count Display	16x32 dot-matrix LEDs
OK/NG Judgement Display	30x25 square display lamp (commonly used for OK/NG) OK?Blue lamp turned on NG: Red lamp blinking?Buzzer sounds(4 patterns
Work Number Selection Display	1-digit 7-segment LED
Count Input	Contact input x 4
Maximum Tightening Number of Bolts	99 counts
Maximum Number of Works	8 sets
OK/NG Judgement Setting	Preset judgement END input judgement Automatic judgement (0 to 300 seconds in steps of 1 second)
Output Function	OK/NG output (Relay contact output rating: 30 V DC, 1 A, 125 V AC, 0.3A)
Input Function	SELECT inputx4 START input END input RESET input WORK SENSOR input
Timer Function Setting	Double count prevention timer (0 to 10 seconds in steps of 0.1 second) Automatic reset timer (0 to 60 seconds in steps of 1 second) Interval warning timer (0 to 99 seconds in steps of 1 second)
Setting Method	Special-purpose application software (USB communication), key operation
Working Temperature Range	-10~40 [°C ]
Electricity Consumption [W]	Below 10
Power Supply AC[V]	100~240V±10% 50/60Hz
Weight	Approx. 400g
