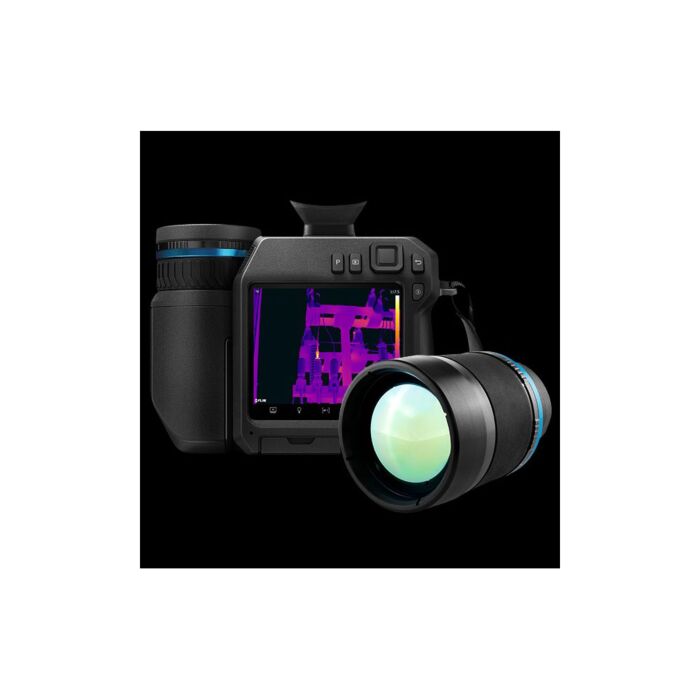

FLIR T840 Thermal Imaging Camera, 80 degree Lens, 464x348, -20 to 1500C

FLIR T840 Thermal Imaging Camera, 80 degree Lens, 464x348, -20 to 1500C

Order # 82511-0201

Mfg # 82511-0201

call-regular 800-828-1470
$29,690.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

FLIR T840 Thermal Imaging Camera, 80 degree Lens, 464x348, -20 to 1500C

Order # 82511-0201 | Mfg # 82511-0201
$29,690.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The FLIR T840 infrared camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging light conditions. The 180° rotating lens platform and thoughtful ergonomic design helps users quickly diagnose failing components in hard-to-reach areas. Pair the T840 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning. A 6° telephoto lens option is also available to ensure accurate temperature measurement of small targets from farther distances.

The purchase of a T840 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

Technical Resources

FLIR T800 Datasheet

Specifications

IR Resolution 464 x 348 (161,472 pixels)
Thermal Sensitivity/NETD <30 mK at 30°C (42° lens)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Digital Camera 5 MP, with built-in LED photo/video lamp
Display 4", 640 x 480 pixel touchscreen LCD with auto-rotation
Storage Media Removable SD card
IMAGING & OPTICAL
Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch Uncooled microbolometer, 17 µm
Digital Zoom 1-6x continuous
f-number f/1.3
Focus Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Image Frequency 30 Hz
Lens Identification Automatic
Macro Mode 71 µm effective spotsize
Minimum Focus Distance lens - 0.15 m, optional macro mode
Non-radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture Resizable and movable
Radiometric IR video recording Real-time radiometric recording (.csq)
Radiometric IR video streaming Yes, over UVC or Wi-Fi
Spectral Range 7.5 - 14.0 µm
UltraMax Quadruples pixel count; activated in menu and processed in FLIR Tools
Viewfinder Yes
MEASUREMENT & ANALYSIS
Accuracy ±2°C (±3.6°F) or ±2% of reading
Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Spot Meter 3 ea. in live mode
USER INTERFACE
Display 4", 640 x 480 pixel touchscreen LCD with auto-rotation
Text Predefined list or touchscreen keyboard
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
POWER
Battery operating time Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type Li-ion battery, charged in camera or on separate charger
ENVIRONMENTAL & CERTIFICATIONS
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
GENERAL
Compatible with FLIR software FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Laser Pointer Yes
Packaging Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
