| IR Resolution |
160 x 120 (19,200 pixels) |
| Display Counts |
6000 |
| AC/DC Voltage |
1000 V AC RMS ±(1.0%+3) 1000 V DC ±(0.09%+3) |
| AC/DC Amps |
10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3) |
| Connectivity |
Bluetooth BLE |
| Imaging & Optical |
|
| Color Palettes |
Iron, rainbow, arctic, white hot, and black hot |
| Field of view - visual |
71° x 56° |
| Focus |
Fixed |
| Frame Rate |
9 Hz |
| Image Modes |
Thermal MSX (Multi Spectral Dynamic Imaging)
Thermal Camera only
Digital Camera only
|
| IR Resolution |
160 x 120 (19,200 pixels) |
| IR Sensitivity |
150 mK (0.15°C) |
| Spectral Response |
8-14 µm |
| Thermal Imaging Detector |
FLIR Lepton® microbolometer |
| Visual Focus and FOV |
Fixed focus, 71° x 56° FOV |
| Visual Resolution |
2 MP (1600 x 1200 pixels) |
| Measurement & Analysis |
|
| AC/DC Amps |
10.00 A AC RMS ±(1.5%+3)
10.00 A DC ±(1.0%+3) |
| AC/DC LoZ V |
1000 V AC RMS or 1000 V DC ±(1.3%+4) |
| AC/DC mVolt |
AC 600.0 mV ±(1.0%+3)
DC 600.0 mV±(0.2%+3) |
| AC/DC Voltage |
1000 V AC RMS ±(1.0%+3)
1000 V DC ±(0.09%+3) |
| Calibration Cycle |
Once per year, recommended |
| Capacitance |
10.00 mF ±(4.0%+5) |
| Contact Temperature Type K thermocouple |
-40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C)
(-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F) |
| Continuity check threshold |
10-100Ω |
| Diode Test |
1.500 V ± 0.9% |
| Display Counts |
6000 |
| Frequency Counter |
100.00 kHz ±(0.1%+5) |
| Measuring Rate |
3 samples per second |
| Resistance |
6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5) |
| Temperature Accuracy |
±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F)
±5°C for temperatures -10°C to 25°C (14°F to 77°F) |
| Temperature Range |
-5°C to 300°C (23°F to 572°F) |
| Temperature Resolution |
0.1°C (0.1°F) |
| Thermal Sensitivity |
150 mK (0.15°C) |
| VFD |
AC V: 1000 V AC RMS, ±(1.3%+4) at 45~65 Hz |
| Communication & Data Storage |
|
| Connectivity |
Bluetooth BLE |
| Image File Format |
Radiometric |
| Storage |
40,000 readings per memory set |
| Storage Media |
eMMC 4GB |
| Stored Image Capacity |
up to 30,000 |
| Video Recording |
50 minutes maximum duration
20 seconds max duration for file transmission |
| User Interface |
|
| Display |
2.8" |
| Display Brightness |
High, Medium, Low |
| Power |
|
| Auto Power Off |
For Meter: set to OFF, 2, 5, or 10 minutes
For Worklight only: set to OFF, 5, 15, or 30 minutes |
| Battery |
TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied. |
| Battery Life |
Approx. 6.5 hours in IGM mode with display brightness set to medium.
Approx. 10 hours in Multimeter mode (medium brightness) |
| Non_Contact Voltage Detector [NCV] |
Yes |
| General |
|
| Dimensions (L x W x H) |
20 cm x 9.6 cm x 5.6 cm (7.9 in x 3.8 in x 2.2 in) |
| Included |

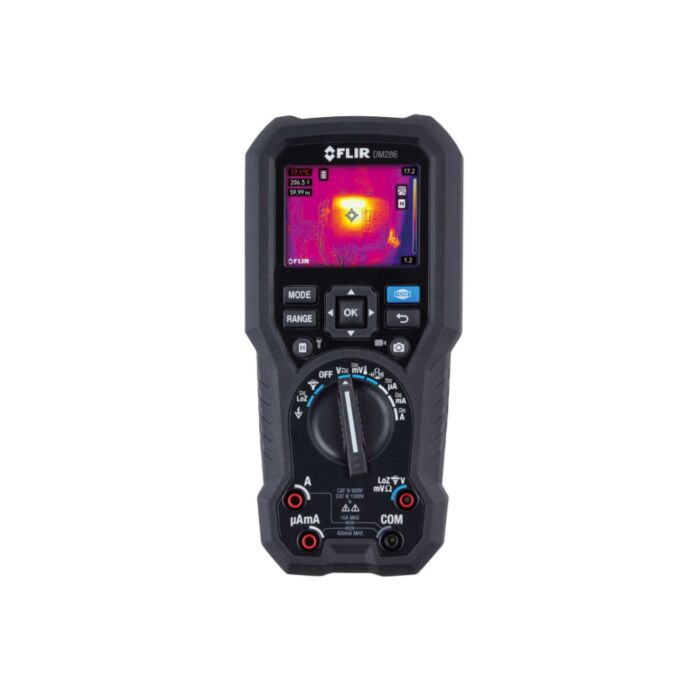

1 x DM286 Industrial Thermal Imaging Multimeter
1 set of CATIV 600V Test Lead
1 set of CATIV 600V Alligator Clip
1 x Type-A to Micro-USB Cable (with Data transfer capability)
1 x K-type Thermocouple (-30°C to 260°C)
1 x Soft-sided carrying case
1 x FLIR Quick Start Guide
1 x FLIR Warranty Card
2 x TA04 Rechargeable Battery Cell
|
| Weight |
569 g (1.25 lb) without battery (approx.) |
| Worklights |
x1 LED |
| Environmental & Certifications |
|
| Certifications |
ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689 |
| Drop test |
2 m (6.6 ft) |
| EMC |
EN61326-1 |
| Emissivity Settings |
0.10 to 1.00 (default is 0.95); select from four presets or set manually. |
| IP Rating |
IP40 |
| Laser Pointer Power |
≤0.39 mW |
| Laser Type |
Class I (red) |
| Laser Wavelength |
640 nm to 660 nm |
| Operating Altitude |
2000 m (6560 ft) |
| Operating Temp & Humidity |
-10°C to 30°C (14°F to 86°F), <85% RH
30°C to 40°C (86°F to 104°F), <75% RH
40°C to 50°C (104°F to 122°F), <45% RH
|
| Pollution Degree |
2.0 |
| Safety |
IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V |
| Storage temperature and relative humidity [RH] |
-20°C to 60°C (-4°F to 140°F), 0-80% RH (without batteries) |
| Accessories |
|
| Software |
FLIR METERLiNK® app |
