Order #: C3-X
Mfg #: 90501-0201
Product Highlights

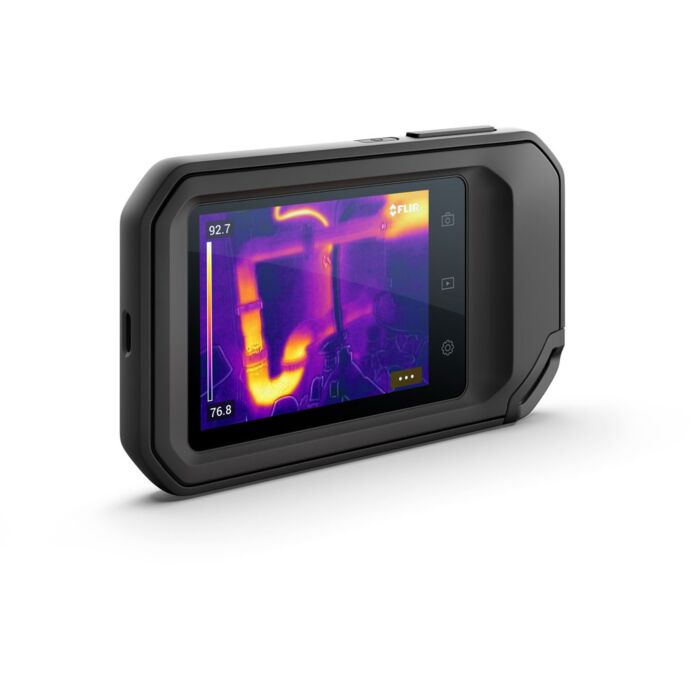

The FLIR C3-X compact thermal camera is an affordable, professional inspection tool for building, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Featuring a thermal camera, visual inspection camera, and LED flashlight, the powerful FLIR C3-X makes it easy to identify hidden problems. Built-in FLIR Ignite™ cloud connectivity allows direct data transfer, storage, and backup, so images are always available on all your devices. The 3.5-inch integrated touchscreen is simple to use, so you can quickly inspect, document repairs, and share evidence with customers. With the FLIR C3-X in your pocket, you'll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.
- Compact 3 in 1 tool including thermal camera, visual inspection camera and LED floodlight.
- True thermal 128 x 96 imager (12,288 pixels)
- Patented MSX® embosses visual details on the thermal image to create sharper, easier to understand picture
- Wider Temperature range (up to 300°C) than the C2
- LCD (3.5 inch)
- Built in LED worklight
- Wi-Fi model (with FLIR Ignite connectivity) allows for automatic image transfer, instant backup (no risk of losing data), and can share and collaborate with others
- FLIR cloud connectivity with automatic transfer, storage, backup, share functionality that dramatically reduces time and effort
- Designed for professional use - Rugged and reliable
Identity and Troubleshoot
- Quickly find hidden faults and reduce diagnostic time with this powerful, professional tool
- Identify and troubleshoot problems faster with the 128 x 96 (12,288 pixels) true thermal imager and 5-megapixel visual camera
- Instantly recognize the location of a temperature issue with FLIR MSX® (Multi-Spectral Dynamic Imaging), which extracts scene details from the built-in visual camera and embosses them onto the full thermal image
- See into dark, difficult-to-reach areas with the help of the bright LED flashlight
Document and Share
- Upload images and data quickly, then communicate findings easily with customers
- Upload directly to FLIR Ignite to conveniently store, organize, and back-up images
- Identify and describe potential issues by adding annotations to images
- Share findings easily and securely by sending a password-protected link via email
- Provide customers professional reports with images that document problems and repairs using preferred software, such as FLIR Thermal Studio
Rugged, Reliable, Compact
- Take the portable, affordable C3-X with you to every job
- IP54 enclosure provides a high level of protection against dust and water
- Designed to withstand a 2 m (6.6 ft) drop
- Carry the compact C3-X in your pocket or stow easily in a crowded tool bag
Each Unit Includes
- C3-X
- Printed documentation
- Wrist strap lanyard
- USB cable
- Pouch
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
Overview | C3-X |
IR sensor | 128 x 96 (12,288 pixels) |
Thermal sensitivity/NETD | <70 mK |
Field of view (FOV) | 53.6° |
Minimum focus distance | Thermal: 0.1 m (3.94 in) |
MSX®: 0.3 m (11.8 in) | |
Image frequency | 8.7 Hz |
Focus | Focus free |
Spectral range | 8-14 µm |
Screen size | 3.5 in |
Digital camera | 5 MP |
Digital camera focus | Fixed |
Image Presentation | |
---|---|
Image adjustment | Automatic level and span |
Manual level and span | |
Image modes | Infrared image |
Visual image | |
MSX (Embossed visual details on thermal image) | |
Picture-in-picture (IR area on visual image) | |
Gallery | Thumbnails and custom folder structure |
Color palettes | Iron |
Gray | |
Rainbow | |
Rainbow HC | |
Auto orientation | Yes |
Touch screen | Capacitive touch |
Measurement & Analysis | |
Object temperature range | -20 to 300°C (-4 to 572°F) |
Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) |
100 to 300°C (212 to 572°F): ±3% | |
[Ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] | |
Measurement functions | Spot |
Box with max./min. | |
Measurement correction | Emissivity; matt/semi-matt/semi-gloss + custom value |
Reflected apparent temperature | |
Atmospheric compensation | |
Image Storage | |
Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
Image storage capacity | >5000 images |
Image file format | Standard JPEG, 14-bit measurement data included |
Communication & Connectivity | |
Wi-Fi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
USB | USB 2.0, Type-C connector |
Bluetooth® | PAN |
Image upload | Directly upload images to FLIR Ignite cloud library and services |
Additional Information | |
Battery type | Rechargeable built-in Lithium ion battery |
Battery operating time | 4 hours |
Charging system | USB-C (1 A) |
Charging time | 2 hours |
External power operation | 5 V, USB-C |
Operating temperature range | -10 to 50°C (14 to 122°F) |
Storage temperature range | -40 to 70°C (-40 to 158°F) |
Encapsulation | Camera housing and lens: IP54 (IEC 60529) |
Drop test | Designed for 2 m (6.6 ft) |
Weight (including battery) | 0.19 kg (0.42 lb) |
Size (L x W x H) | 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in) |
Tripod mounting (built-in) | UNC 1/4"-20 |
