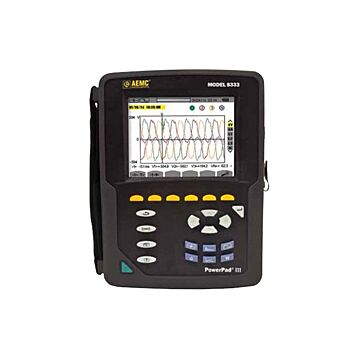

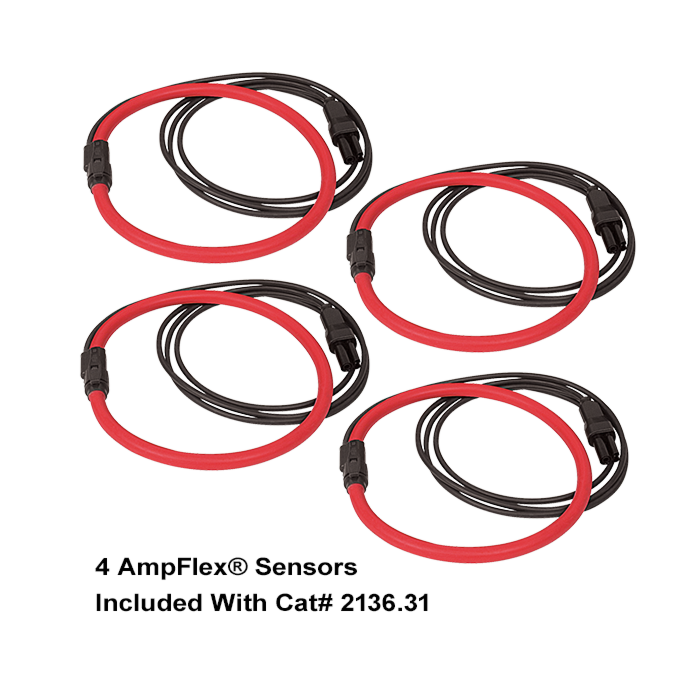

AEMC Instruments 8336 PowerPadIII three-phase power quality analyzer with AmpFlex Sensors

Order # 2136.31 | Mfg # 2136.31
Save 5%
$6,690.00
$6,355.50
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600 V CAT IV.

The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.

  • Measurement of TRMS Voltages Up to 1000Vrms AC/DC for Two-, Three-, Four- or Five-Wire Systems
  • Measurement of TRMS Currents Up to 10,000Arms (Sensor Dependent)
  • Direct Measurement of Neutral Current and Voltage
  • Frequency Measurement (40 to 69Hz Systems)
  • Record and Display Trend Data as Fast as Once Per Second for One Month for Up to 25 Variables
  • Transient Detection on all V and I Inputs (Up to 210)
  • Selectable PT and CT Ratios
  • Inrush Current Measurement
  • Calculation of Crest Factors for V and A
  • Calculation of The K-Factor for Transformers
  • Calculation of Short-Term and Long-Term Flicker
  • Calculation of the Three-Phase Voltage Unbalance
  • Harmonic Measurements (Referenced to the Fundamental or RMS Value) for Voltage, Current or Power, Up to 50th Harmonic
  • Stores Up to 10,000 Alarm Events
  • Displays of Harmonic Sequencing and Direction and Calculation of Overall Harmonics
  • Real-Time Display of Phasor Diagrams Including Values and Phase Angles
  • Monitors the Average Value of any Parameter, Calculated for a Period from 1 Sec to 2 Hrs
  • Measurement of Active, Reactive and Apparent Power Per Phase and Their Respective Sum Total
  • Calculation of Power Factor, Displacement Power Factor and Tangent Factor
  • Recording, Time Stamping and Characterization of Disturbance (Swells, Sags and Interruptions, Exceedence of Power and Harmonic Thresholds)
  • 2GB Internal Trend Recording Memory
  • Additional Memory for Alarm, Transient, Inrush and Snapshot Storage
  • Measurement of Energy VAh, VARh, Wh and VADh
  • 65μs/Sample Trend Recording
  • The Max and Min RMS Measurements are Calculated Every Half-Period



Each Unit Includes

  • Dataview® Software for Configuring Data Storage
  • Real-Time Display
  • Analysis and Report Generation

Technical Resources

AEMC Instruments 8336 PowerPadIII three-phase power quality analyzer with AmpFlex Sensors Accessories

checkbox-empty
Select
AEMC Instruments 2133.73 Extra Large Classic Tool Bag (18x9x12")
checkbox-empty
Select
AEMC MR193-BK AC CurrentProbe,1000AAC/1400ADC
checkbox-empty
Select
AEMC MN93-BK AC Current Probe, 200A
AEMC Instruments MN93-BK AC Current Probe, 200A
Special Price $239.40 Save 5 % Regular Price $252.00
View details external-link
checkbox-empty
Select
AEMC SR193-BK
checkbox-empty
Select
AEMC Instruments 193-24-BK AmpFlex Sensor, 24"
AEMC Instruments 193-24-BK AmpFlex Sensor, 24"
Special Price $308.75 Save 5 % Regular Price $325.00
View details external-link
checkbox-empty
Select
AEMC 2140.35 Ampflex Sensor, 36"
AEMC Instruments 193-36-BK Ampflex Sensor, 36"
Special Price $356.25 Save 5 % Regular Price $375.00
View details external-link
checkbox-empty
Select
AEMC MN193-BK AC Current Probe, 5A/100A
checkbox-empty
Select
AEMC Instruments 2140.40 BNC Adapter for use w/AC/DC Current Probe
AEMC Instruments 2140.40 BNC Adapter
Special Price $142.50 Save 5 % Regular Price $150.00
View details external-link
checkbox-empty
Select
AEMC 2140.44 Lead, One 10ft(3m) Black Lead w/Black Alligator Clip
checkbox-empty
Select
AEMC 2140.48 Miniflex Sensor 10"
AEMC Instruments MA193-10BK Miniflex Sensor 10"
Special Price $264.10 Save 5 % Regular Price $278.00
View details external-link
checkbox-empty
Select
AEMC MA193-14-BK
AEMC Instruments MA193-14-BK Flexprobe Probe
Special Price $293.55 Save 5 % Regular Price $309.00
View details external-link
checkbox-empty
Select

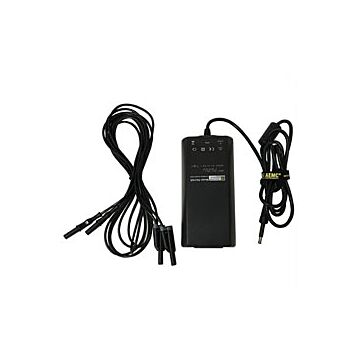

AEMC 2140.77
