USG5000V Series adopts Direct Digital Synthesis (DDS) technology, enabling the generation of high-precision, stable waveforms across a frequency range of 9 kHz to 22 GHz. It supports analog demodulation functions such as AM, FM, ØM, and I/Q modulation, and is also equipped with pulse modulation, pulse train generation, and a power meter function. With its user-friendly operation, superior technical specifications, and intuitive graphical display, the USG5000V Series serves as a versatile tool for learning, testing, and improving work efficiency.

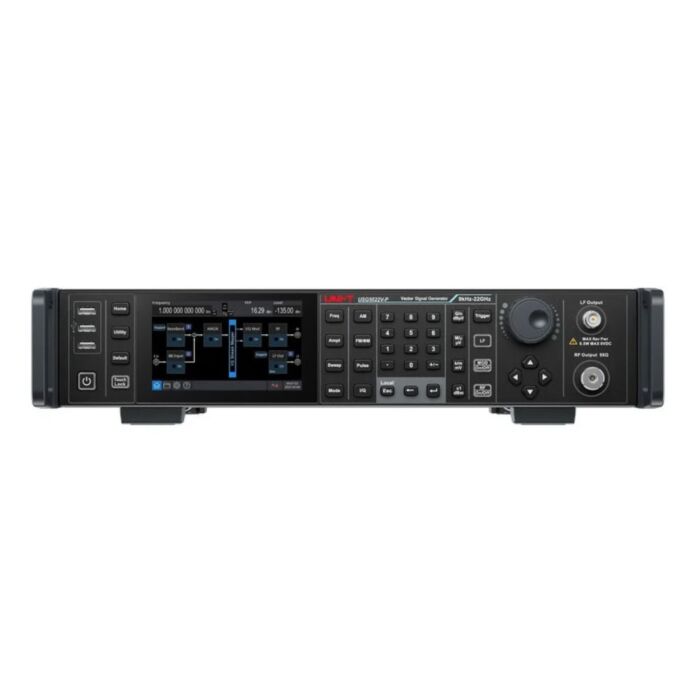

The UNI-T USG5014V RF vector signal generator delivers professional microwave performance with frequencies from 9 kHz to 14 GHz and 150 MHz I/Q modulation bandwidth, making it essential for commercial Ku-band satellite ground equipment testing, X-band radar component development, and advanced microwave system characterization. Featuring vector modulation capability, exceptional phase noise performance (<-122 dBc/Hz @ 1 GHz, <-102 dBc/Hz @ 10 GHz), and comprehensive analog modulation, this instrument provides the microwave signal generation capabilities that engineers demand for testing commercial satellite terminals, developing wireless infrastructure equipment, and characterizing RF components operating in X-band and Ku-band frequencies.
High-performance microwave signal generator covering L/S/C/X/Ku-bands (10 kHz to 14 GHz) with exceptional -135 to +25 dBm output power, ideal for satellite communications, radar testing, and 5G development. Features professional-grade phase noise (<-122 dBc/Hz), comprehensive modulation capabilities, and integrated 50 MHz function generator.
- Frequency Range: CW: 9 kHz - 14 GHz with an IQ modulation bandwidth from 5 MHz to 6 GHz
- Frequency Resolution: 0.001 Hz.
- Level Range: -135 dBm to +25 dBm.
- Phase Noise: < -122 dBc/Hz (at 1 GHz @ 20 kHz offset).
- Display: 5-inch TFT LCD touch screen
- Connectivity: LAN, USB (Host and Device), and an optional GPIB.
- Built-in Function Generator: 50 MHz
Applications
- Commercial Ku-Band Satellite Ground Equipment
- Microwave Wireless Backhaul Equipment
- X-Band Radar Component Development
- Microwave Component Manufacturing
- Advanced 5G and 6G Research
Each Unit Includes
- 1 - RF Vector Microwave RF Signal Generator (USG5014V)
- 1 - Power Cord
- 1 - USB Cable (UT-D14)
- 1 - User manual
