USG3000M series RF signal generators deliver high-quality signals, precise signal levels, and an ultra-wide output power range, meeting the demanding testing needs of wireless communication, aerospace, automotive electronics, industrial manufacturing, semiconductor, and research and education industries.

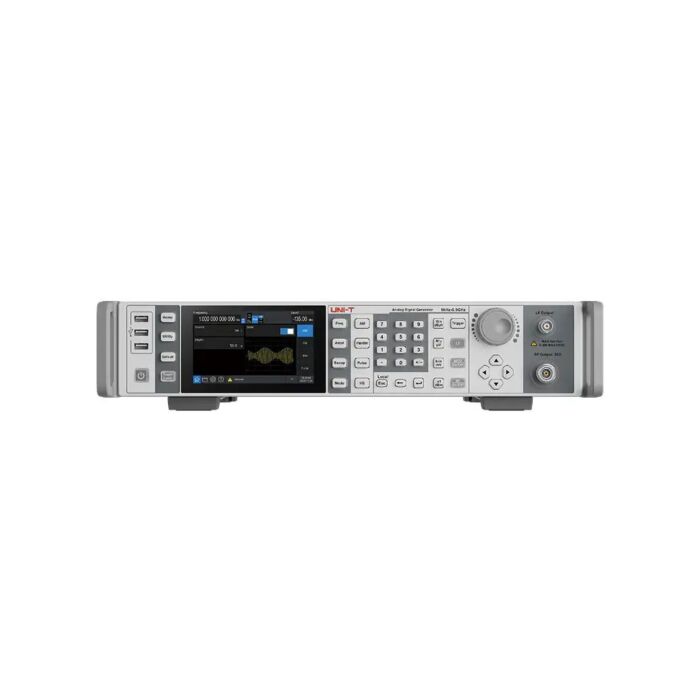

The UNI-T USG3045M-P delivers exceptional RF signal generation with mechanical attenuation for superior output power and stability. Operating from 9 kHz to 4.5 GHz with ultra-low phase noise, this premium instrument is engineered for demanding RF testing applications in telecommunications, aerospace, automotive, and research environments where higher output power is essential.
- Mechanical Attenuator: Premium mechanical attenuation system for superior output power stability
- Enhanced Output Power: Delivers up to +24 dBm output for driving high-power components
- Extended Frequency Range: Generate precision signals from 9 kHz to 4.5 GHz with 0.001 Hz resolution
- Exceptional Level Control: Wide dynamic range from -135 dBm to +24 dBm with outstanding accuracy
- Superior Signal Clarity: Ultra-low phase noise (< -122 dBc/Hz @ 1 GHz, 20 kHz offset) for demanding applications
- Comprehensive Modulation: Standard AM, FM, and ΦM capabilities with flexible configuration options
- User-Friendly Interface: Intuitive 5-inch capacitive touchscreen with logical menu structure
- Versatile Connectivity: LAN, USB, and optional GPIB interfaces for seamless integration
- Integrated 50 MHz Function Generator: Added functionality for creating complex test signals
Applications
- Wireless Communications Testing
- Component/Subsystem Evaluation
- Automotive Electronics
- Production / Manufacturing Test
- Research & Education
Each Unit Includes
- 1 - 9 kHz to 4.5 GHz Analog RF Signal Generator with Mechanical Attenuator (USG3045M-P)
- 1 - Power Cord (Country-Specific)
- 1 - USB Data Cable (UT-D14)
- 1 - Calibration Certificate
- 1 - User Manual
