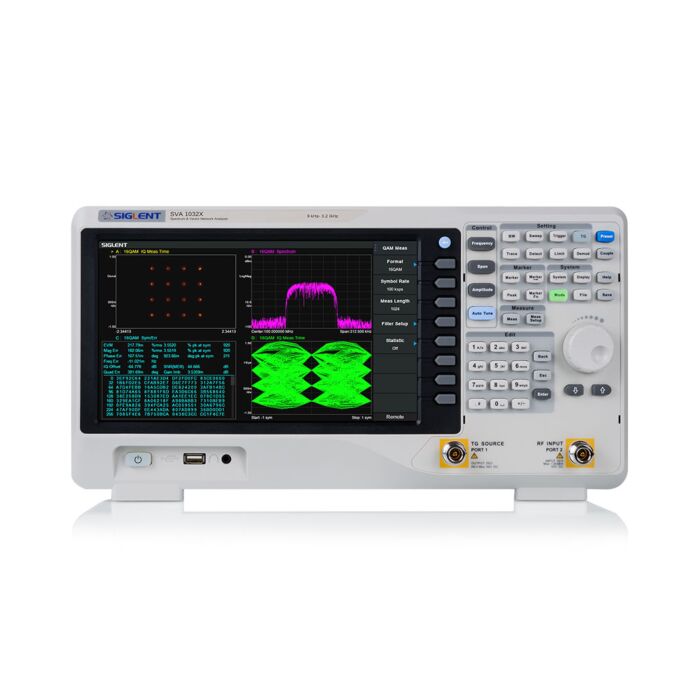

Siglent SVA1032X Network Analyzer,9kHz to 3.2GHz

Siglent SVA1032X

Order # SVA1032X

Mfg # SVA1032X

call-regular 800-828-1470
$3,991.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Siglent SVA1032X

Order # SVA1032X | Mfg # SVA1032X
$3,991.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.

The base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

*New SVA1000X instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.

  • Tracking Generator Standard
  • Distance To Fault (Opt.)
  • Vector Network Analyzer function (included after 9/23/2019)
  • EMI Filter and Quasi-Peak Detector Kit (Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Technical Resources

Siglent SVA1000 Series Datasheet
Siglent SVA1000 Series Programming Guide
Siglent SVA1000 Series Service Manual
Siglent SVA1000 Series User Manual

Specifications

ModelSVA1015XSVA1032XSVA1075X
Spectrum Analyzer Frequency Range 9 kHz~1.5 GHz 9 kHz~3.2 GHz 9 kHz~7.5 GHz
Vector Network Analyzer Frequency Range 10 MHz~1.5 GHz 100 kHz~3.2 GHz 100 kHz~7.5 GHz
Resolution Bandwidth 1 Hz~1 MHz 1 Hz~1 MHz 1 Hz~3 MHz
Displayed Average Noise Level -156 dBm/Hz -161 dBm/Hz -165 dBm/Hz
SSB Phase Noise <-99 dBc/Hz <-98 dBc/Hz <-98 dBc/Hz
Total Amplitude Accuracy < 1.2 dB < 0.7 dB < 0.7 dB
Tracking Generator 5 MHz~1.5 GHz 100 kHz~3.2 GHz 100 kHz~7.5 GHz
VNA measurement Vector S11,Vector S21 Vector S11,Vector S21 Vector S11,Vector S21
Distance to Fault VNA Timing Domain Analysis Locator VNA Timing Domain Analysis Locator VNA Timing Domain Analysis Locator
Touch Screen Multi Touch, Mouse and Keyboard supported Multi Touch, Mouse and Keyboard supported Multi Touch, Mouse and Keyboard supported
Advanced Measurement CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Reflection Measurement VSWR measurement using Reflection Bridge VSWR measurement using Reflection Bridge VSWR measurement using Reflection Bridge
EMI Test EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line
Modulation Analysis AM, FM; ASK, FSK, MSK, PSK, QAM AM, FM; ASK, FSK, MSK, PSK, QAM AM, FM; ASK, FSK, MSK, PSK, QAM
Communication Interface LAN, USB Device, USB Host (USB-GPIB) LAN, USB Device, USB Host (USB-GPIB) LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
