MadgeTech RFPULSE2000A Wireless Pulse Data Logger

Overview

Product Highlights

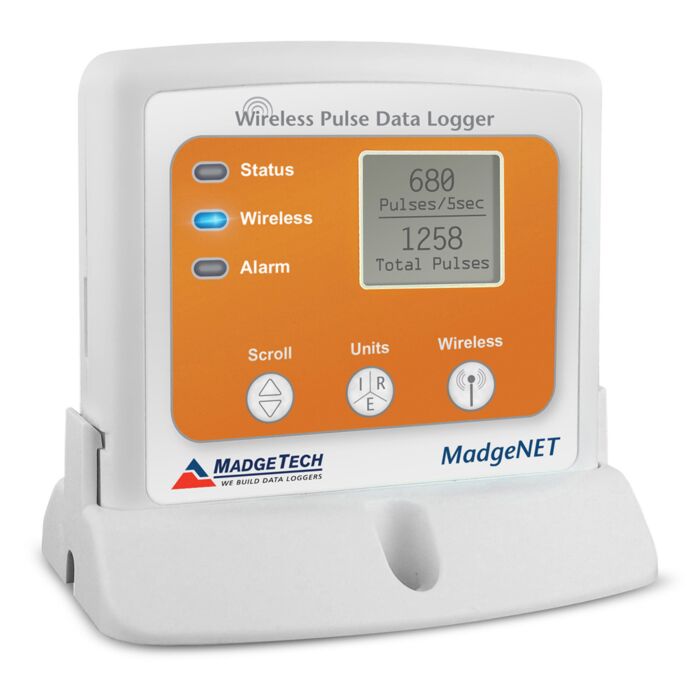

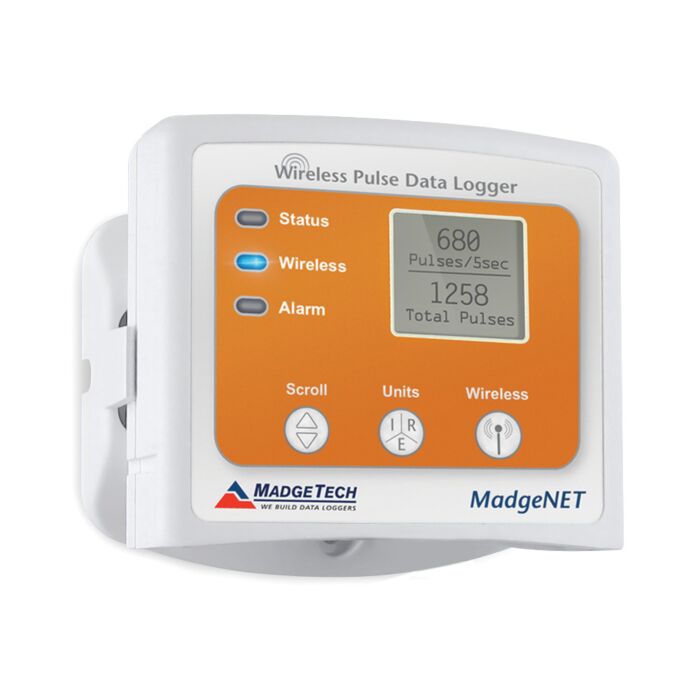

Wireless Pulse Data Logger with LCD

The RFPulse2000A is a wireless pulse data logger. Includes declaration of conformance.

Digital Display
Continuous Monitoring
Configurable Alarms & Notifications

The RFPulse2000A is a wireless data logger that records pulse output signals from a variety of sensors. The RFPulse2000A is unique in that it not only calculates pulse count, but it also calculates pulse rate.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPulse2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFPulse2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFPulse2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Technical Resources

Madgetech RFPULSE2000A Datasheet
Madgetech RFPULSE2000A Product User Guide

Specifications

Memory	63 Kilobytes (KB)
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	5 years typical at a 10 minute reading rate
Material	ABS plastic
Dimensions	3.5 in x 3.0 in x 0.95 in (88.9 mm x 76.2 mm x 24.1 mm) - Data logger only
IP Rating	IP22
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Maximum Pulse Rate	10 KHz
Pulse Input Range	0 to 4294967295 Pulses
Pulse Input Low	<720 mV
Pulse Input High	>1.070 V

RF Carrier Frequency	2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical outdoors Line of sight	Up to 2000 ft
Typical Indoors line of sight	Up to 500 ft
