MadgeTech RFCO2RHTEMP2000A
Wireless CO2, Humidity&Temp Data Logger w/LCD&remote sensor

Order #: RFCO2RHTEMP2000A

Mfg #: 901391-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$769.00

MadgeTech RFCO2RHTEMP2000A

Wireless CO2, Humidity&Temp Data Logger w/LCD&remote sensor

Order #: RFCO2RHTEMP2000A

Mfg #: 901391-00

$769.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

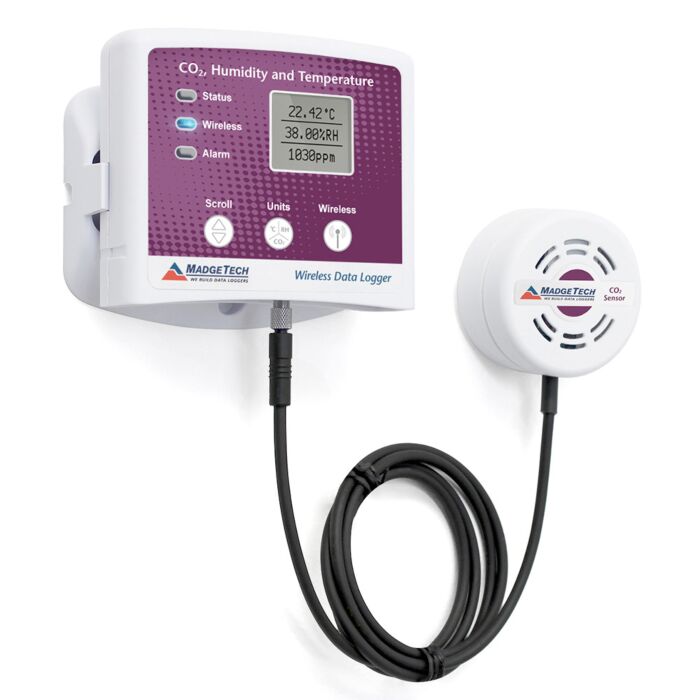

Wireless CO2, Humidity and Temperature Data Logger with LCD and remote sensor

The RFCO2RHTemp2000A is a wireless CO2, humidity and temperature data logger. Includes standard calibration certificate.

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications

The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature. It's the all-in-one solution for acquiring a complete environmental profile.

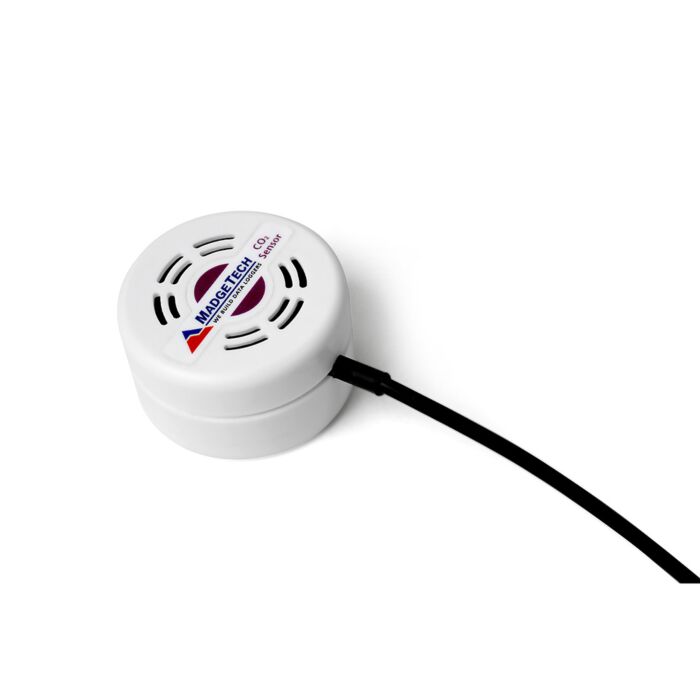

The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Memory 10,752 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 16 months typical at a 10 minute reading rate
Material ABS plastic
Dimensions Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)
IP Rating IP22
Operating Environment 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH, 13.77 PSIA to 100 PSIA
Required Interface Package RFC1000
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Internal Channel Temperature Sensor Silicon
Internal Channel Temperature Range 0 °C to +55 °C (+32 °F to +131 °F)
Internal Channel Temperature Resolution 0.08 °C (0.144 °F)
Internal Channel Temperature Calibrated Accuracy ±1.0 °C
Humidity Sensor Silicon
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.08 %RH
Humidity Calibrated Accuracy ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise
Carbon Dioxide Range 0 ppm to 200,000 ppm
Carbon Dioxide Resolution 10 ppm
Carbon Dioxide Accuracy 70 ppm ± 5% of the reading
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 2000 ft
Typical Indoors line of sight Up to 500 ft
