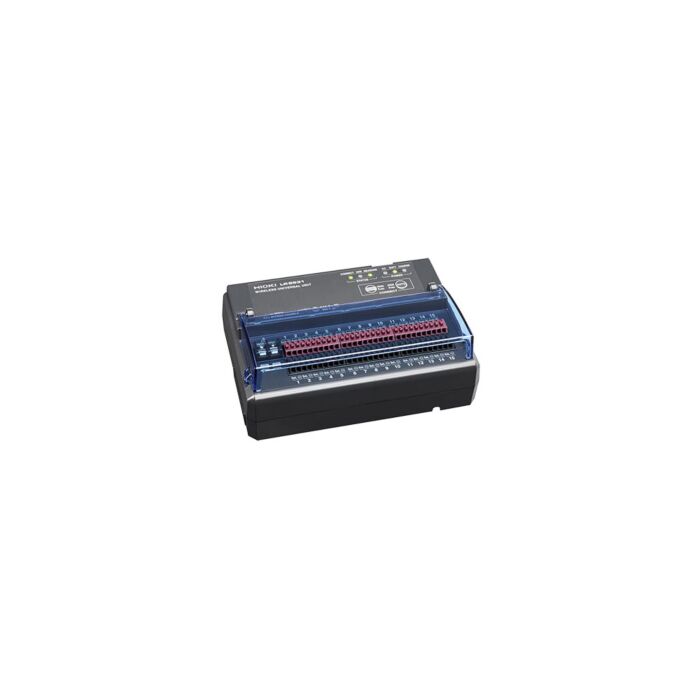

Hioki LR8531 Wireless Universal Unit

Product Highlights

The Hioki LR8531 provides 15 channels with a maximum sampling rate of 10 ms. It used for DC voltage measurement and temperature measurement using an RTD can be performed. The wireless universal unit LR8531 can operate for about 7 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.

The LR8531 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8531 can be wirelessly connected to the Memory HiLogger LR8450-01.

Features

• For use with LR8450-01 Wireless LAN Multi-Channel Data Logger
• Suitable for convenient installation in testing equipment and confined locations
• Built-in buffer memory can hold up to 5 minutes of measurement data
• Operates for approximately 7 hours on battery power (sold separately)
• Number of channels: 15 (users can set voltage, thermocouple, humidity, RTD, or resistor for each channel)
• Maximum sampling rate: 10 ms
• Range (line of sight): 98.4 ft. (30 m)
• Input terminals: Push-button type terminal block (4 terminals per channel)
• Measurement target: Voltage, thermocouples, humidity, RTD, resistor
• Dimensions (W x H x D): 6.06 x 4.17 x 2.24 in. (154 x 106 x 57 mm)
• Weight: 13.6 oz. (386 g)
