MadgeTech TEMP1000IS-5.25

Order # TEMP1000IS-5-25 | Mfg # 902216-00
$239.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

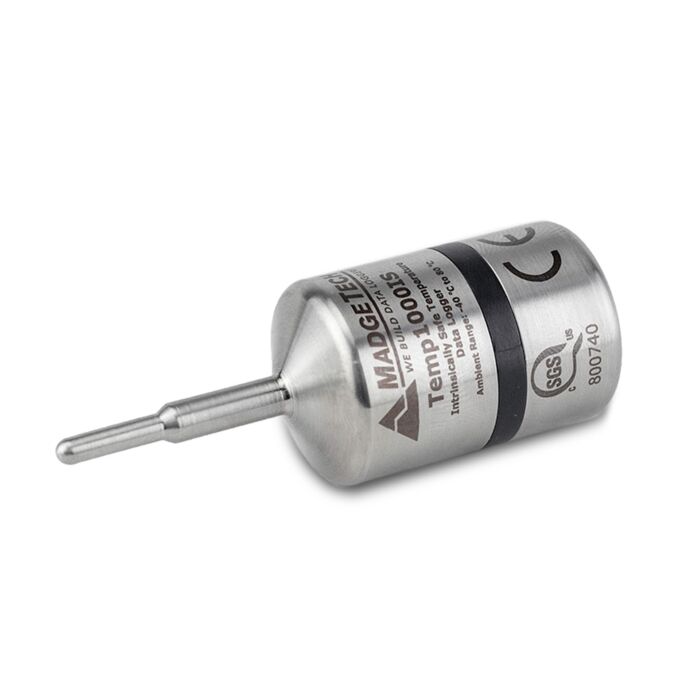

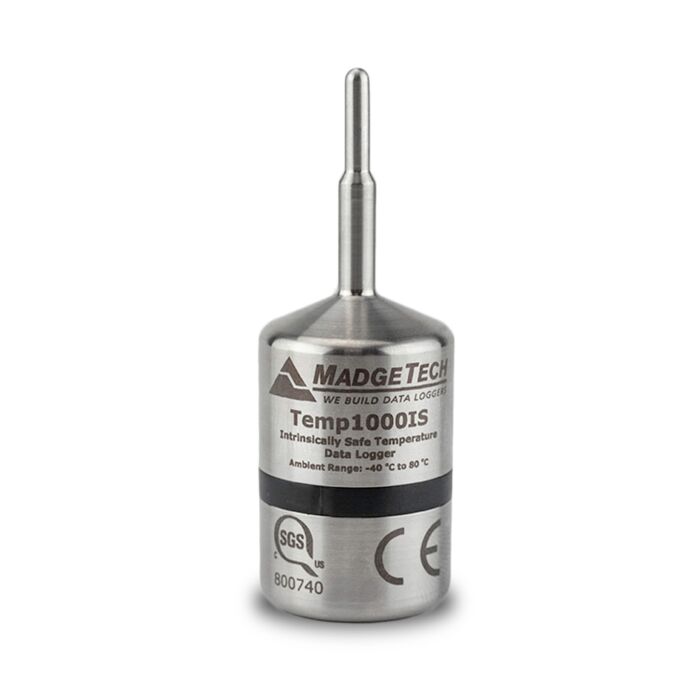

Submersible, Intrinsically Safe Temperature Recorder with 5.25 inch probe

The Temp1000IS is an intrinsically safe, temperature data logger. Includes ISO17025 accredited calibration certificate.

  • Compact Size
  • Intrinsically Safe
  • Available with Flush Bottom or Key Ring End Cap

The Temp1000IS is a compact, temperature data logger that is SGS approved as intrinsically safe for hazardous environments. The Temp1000IS is available with either a flush bottom or key ring end cap.

This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The Temp1000IS can store up to 32,767 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.

The Temp1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The Temp1000IS is an intrinsically safe, temperature data logger. Includes ISO17025 accredited calibration certificate.

  • Compact Size
  • Intrinsically Safe
  • Available with Flush Bottom or Key Ring End Cap

The Temp1000IS is a compact, temperature data logger that is SGS approved as intrinsically safe for hazardous environments. The Temp1000IS is available with either a flush bottom or key ring end cap.

This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The Temp1000IS can store up to 32,767 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.

The Temp1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications

Memory 65,536 Readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Battery Life 2 year typical at 15 minute reading rate
Material 316 Stainless Steel/Radel
Dimensions 2.66 in x .97 in dia. (67.6 mm x 24.6 mm dia.)
Key Ring End Cap Key ring replaces standard bottom; Thru-hole: 0.150"
IP Rating (Not Rated) Caution: Do not submerge this product to retain IS rating.
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (case properly sealed)
Required Interface Package IFC400
Approvals CE FM Class 3600, latest revision
FM Class 3610, latest revision
CAN/CSA-C22.2 No. 60079-0:15
CAN/CSA-C22.2 No. 60079-11:14
Temperature Sensor Semiconductor
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.5 °C (0 °C to ±55 °C), ±0.9 °F (32 °F to 131 °F)
