Order #: TC101A-MP
Mfg #: 901590-00

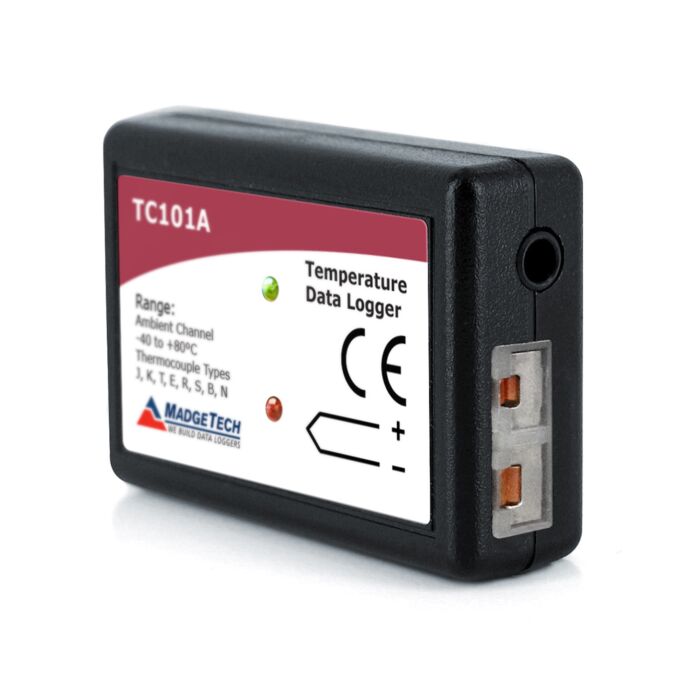

Thermocouple based Temperature Recorder w/ standard mini-plug connectors and a 10 year battery life
The TC101A is a compact, thermocouple-based temperature data logger. Includes ISO/IEC 17025 Accredited Certificate.
- Compact Size
- Accepts a Variety of Thermocouples
- Available in 3 Thermocouple Connections
The TC101A is a compact, thermocouple-based temperature data logger. This device is available in three thermocouple connection options: miniplug, screw terminal and terminal block.
Compatible with eight different types of thermocouple probes, the TC101A can measure temperatures as low as -270 °C, and up to as high as 1820 °C (probe dependent), with an environmental operating temperature range of -40 °C to +80 °C (-40 °F to +176 °F). The TC101A also features a 10-year battery life and the memory storage capacity of up to 1,047,552 readings.
The TC101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
|Reading Rate||1 reading every second to 1 reading every 24 hours|
|Cold Junction Compensation||Automatic|
|Channels||1 Internal & 1 Remote|
|LED Indicators||Red & Green|
|Battery Life||10 years typical at a 15 minute reading rate|
|Dimensions||1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)|
|Operating Environment||-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing|
|Required Interface Package||IFC200|
|Internal Channel Temperature Sensor||Semiconductor|
|Internal Channel Temperature Range||-40 °C to +80 °C (-40 °F to +176 °F)|
|Internal Channel Temperature Resolution||0.01 °C (0.018 °F)|
|Internal Channel Temperature Calibrated Accuracy||±0.5 °C|
|Remote Channel Temperature Sensor||Thermocouple Types J, K, T, E, R, S, B ,N|
|Remote Channel Temperature Range||Thermocouple Dependent|
|Remote Channel Temperature Resolution||Thermocouple Dependent|
|Remote Channel Temperature Calibrated Accuracy||Thermocouple Dependent|
