MadgeTech PHTEMP2000

pH and Temperature Recorder w/ LCD Display and power supply

Order #: PHTEMP2000

Mfg #: 900988-00

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$669.00

Availability: Ships in 1-2 weeks

Ships Free Over $100

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Overview

Product Highlights

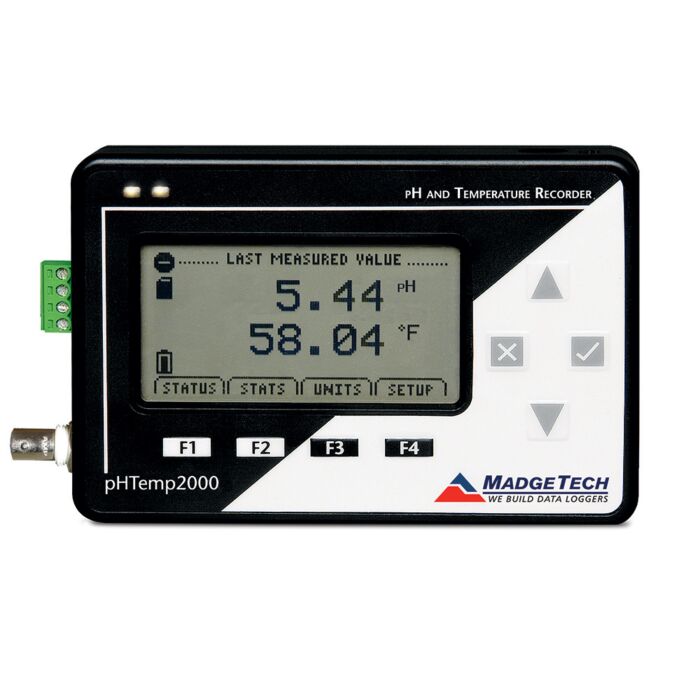

pH and Temperature Recorder with LCD Display and universal power supply

The pHTemp2000 is a pH and temperature data logger. Includes standard calibration certificate.

Digital Display
Accepts 2, 3 and 4-wire RTDs
Connects to Common pH and ORP Electrodes

The pHTemp2000 is a pH and temperature data logger with an LCD and wall mounted universal power adapter.

The pHTemp2000 accepts 2, 3 and 4-wire RTDs and can store up to to 131,072 readings. To maximize memory capacity, users can enable or disable channels. This device directly connects to many commonly used pH and ORP electrodes through a female BNC connector mounted on its side. Temperature is measured by directly connecting an RTD to the pHTemp2000.

The pHTemp2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Specifications

Memory	131,072 readings (all channels enabled)
Reading Rate	1 reading every 2 seconds up to 1 reading every 24 hours
Baud Rate	115,200
Battery Life	1 year battery life at one minute reading rate with display off. 30 days typical with continuous display use. Optional AC adapter available.
Material	Black anodized aluminum
Dimensions	4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm)
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	IFC200
Approvals	CE

Temperature Sensor	2, 3 or 4 wire 100 Ω Platinum RTD
Temperature Resolution	0.001 Ω 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy	±0.015 Ω ±0.04 °C (±0.072 °F)
Probe Temperature Range	80 Ω to 145 Ω -40 °C to +110 °C (-40 °F to 230 °F)
