Order #: MICROTEMP100
Mfg #: 902239-00

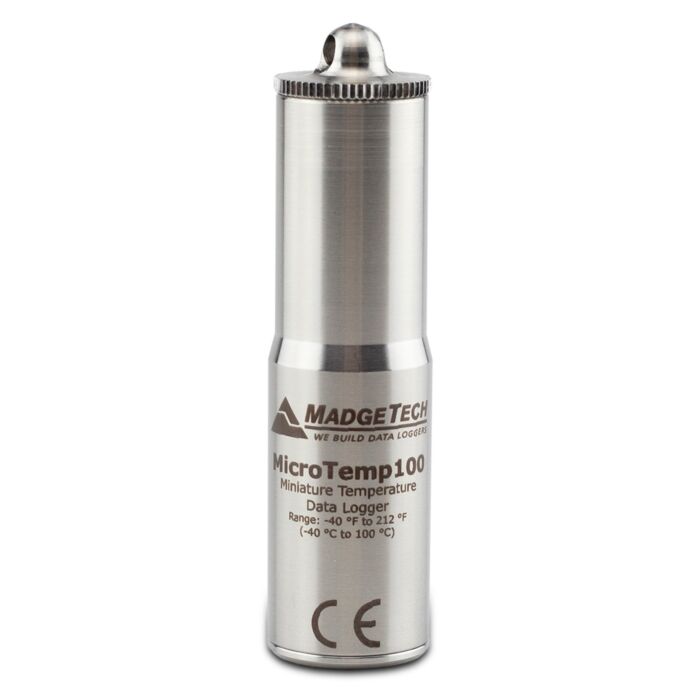

MadgeTech MICROTEMP100
Order #: MICROTEMP100
Mfg #: 902239-00
Product Highlights
Submersible, Miniature Temperature Recorder up to 100°C (212°F)
The MicroTemp100 is a miniature data logger built to withstand temperatures up to 100 °C (212 °F). Includes ISO17025 accredited calibration certificate.
- 2.6 Inches Tall
- Submersible up to 230 Feet
- Measures Temperatures up to 100 °C (212 °F)
The MicroTemp100 is a miniature data logger built to withstand temperatures up to 100 °C (212 °F). Only 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter, this data logger can easily fit into the smallest spaces.
Don't let its tiny size fool you, the MicroTemp100 measures and records temperatures ranging from -40 °C to +100 °C (-40 °F to +212 °F). The MicroTemp100 is submersible up to 230 feet (70 m) and has a storage capacity of 32,767 readings.
The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units, including Pasteurization Units (PU).
General | |
---|---|
Memory | 32,767 readings |
Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
LED Indicators | 1 status LED |
Battery Life | 1 year typical |
Material | 316 L food grade stainless steel |
Dimensions | 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.) |
IP Rating | IP68 |
Submersible | Yes |
Operating Environment | -40 °C to +100 °C (-40 °F to +212 °F), 0 %RH to 100 %RH |
Required Interface Package | IFC202 |
Approvals | CE |
Temperature | |
---|---|
Temperature Sensor | Internal semiconductor |
Temperature Range | -40 °C to +100 °C (-40 °F to +212 °F) |
Temperature Resolution | 0.1 °C (0.18 °F) |
Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C) |
±1.0 °C (50.1 °C to 100 °C) | |
±2.0 °C (-40.0 °C to -0.1 °C) |
-
