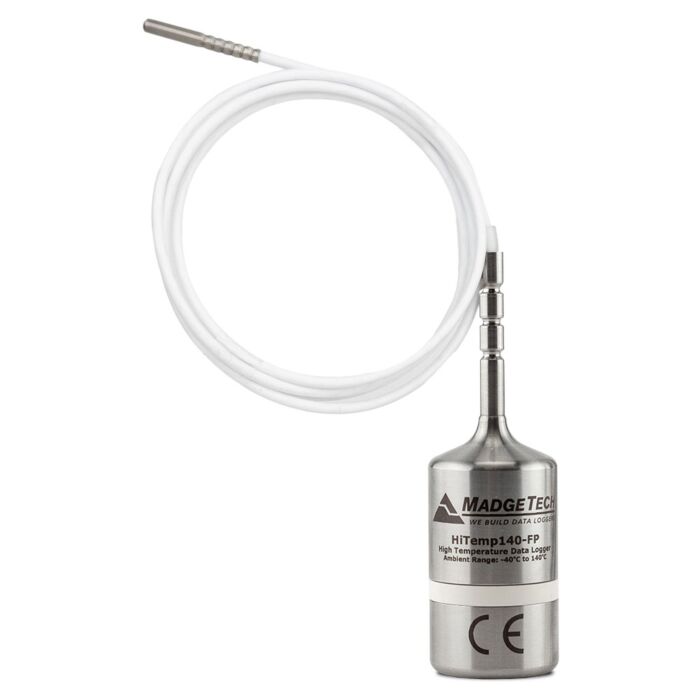

MadgeTech HITEMP140-FP-6

6" Flexible Probe Temperature Data Logger

Order #: HITEMP140-FP-6

Mfg #: 902003-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$589.00

MadgeTech HITEMP140-FP-6

6" Flexible Probe Temperature Data Logger

Order #: HITEMP140-FP-6

Mfg #: 902003-00

$589.00
Availability: Ships in 1-2 weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

6" Flexible Probe Temperature Data Logger

The HiTemp140-FP is a high temperature data logger with a flexible RTD probe. Includes ISO17025 accredited calibration certificate.

  • ±0.1 °C Accuracy
  • Available in a Variety of Probe Lengths
  • Probe Measures Temperatures up to 260 °C

The HiTemp140-FP is a high temperature data logger built for use in harsh environments. The body of the HiTemp140-FP can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but can extend to higher temperatures when used with MadgeTech's thermal barrier options.

The HiTemp140-FP is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Memory 65,536 readings
Reading Rate 1 reading every 0.25 seconds up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 2 years typical (1 minute reading rate)
User Replaceable Battery
Material Body: 316 Stainless Steel
Probe: PFA Insulated Cable with Stainless Steel Tip
Dimensions Body: 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm)
Probes: HiTemp140-FPST-6: 6 in x 0.13 in (152.5 mm x 3.2 mm)
HiTemp140-FPST-12: 12 in x 0.13 in (304.8 mm x 3.2 mm)
HiTemp140-FPST-36: 36 in x 0.13 in (914 mm x 3.2 mm)
HiTemp140-FPST-72: 72 in x 0.13 in (1829 mm x 3.2 mm)
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP Rating IP68
Submersible Yes
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F) Body of Logger Cannot Exceed 140 °C
0 %RH to 100 %RH, 0 PSIA to 100 PSIA
With Thermal Shield: -200 °C to +250 °C (-328 °F to +482 °F)
Required Interface Package IFC400 or IFC406
Approvals CE
Weight 0.1875 LBS
Temperature Sensor Flexible RTD Probe
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.1 °C (0.18 °F)
Probe Temperature Range -60 °C to +260 °C (-76 °F to +500 °F)
