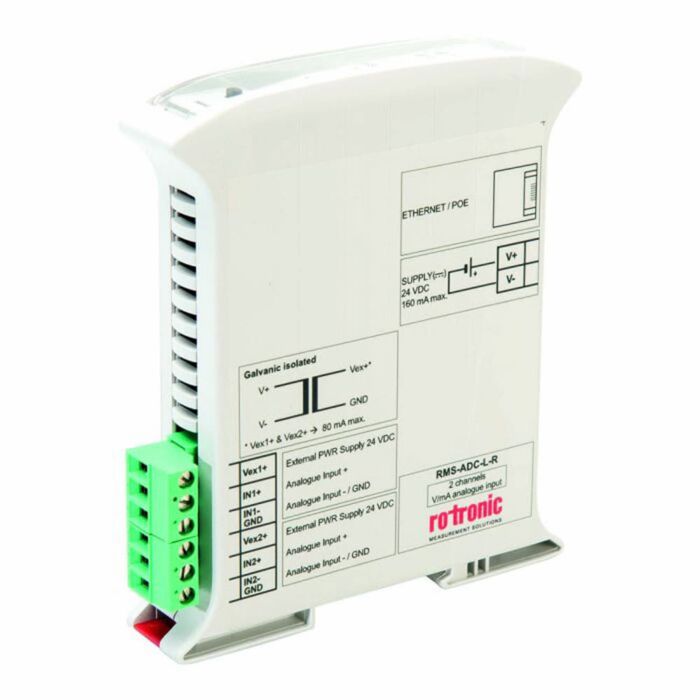

Rotronic RMS-ADC-L-R Data Logger

The RMS-ADC-L-R is a data logger with two integrated analog-to-digital converters to which two sensors can be connected for high-precision analog measurement. The data logger stores 44,000 pairs of measured values and sends them to the RMS database via LAN.

• 44,000 data point memory
• 2 analog sensor inputs
• Various scaling: 0 - 1/5/10V and 0/4 - 20mA
• ±0.03 % f.s. measurement range accuracy
• Conforms to FDA CFR 21 Part 11 / GAMP 5

Applications

• Control cabinets
• Update of brownfield projects

Each Unit Includes

• Data Logger (RMS-ADC-L-R)
