MadgeTech ULTRASHOCK
Order #: ULTRASHOCK
Mfg #: 902121-00
Product Highlights

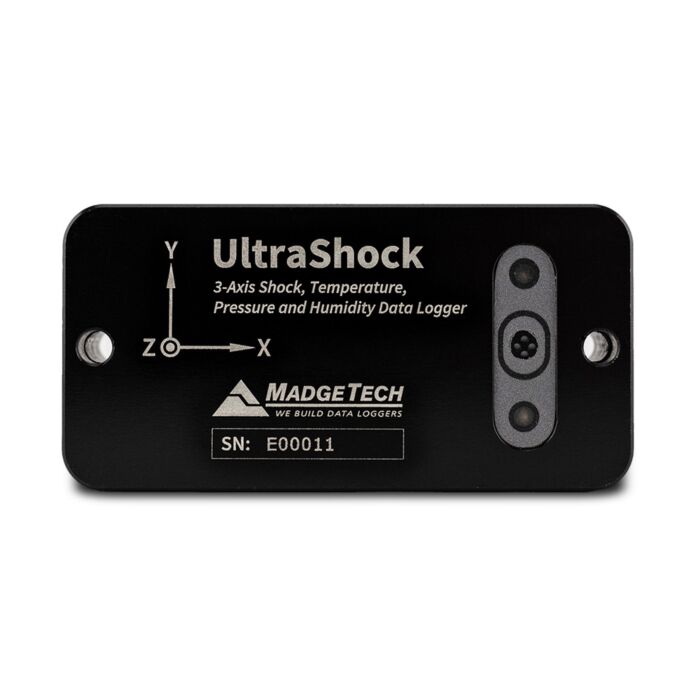

Tri-Axial Shock, Temperature, Humidity and Pressure Recorder w/ power cord and adapter
The UltraShock is a tri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges. Includes standard calibration certificate.
- Three built-in acceleration ranges: ±15 g, ±100 g and ±300 g
- Records shock, temperature, humidity and pressure
- 3,593,358 readings of non-volatile memory
- 1kHz sampling rate
- Rechargeable battery with three month battery life
- Direct USB interface connection
The new UltraShock contains powerful improvements and an all-in-one functionality, allowing it to replace all current shock models and their capabilities. New refinements also include a smaller, lighter design and LED status indicators.
Additional features include a significantly improved battery life and the use of a USB-C cable, making it easily rechargeable. Each UltraShock purchase contains an AC adapter and USB cable, eliminating the need for an additional interface cable.
The UltraShock is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 3,593,358 readings (598,893 per channel, all channels in use) |
| Reading Rate | 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate. |
| Battery Life | 90 days typical at 64Hz rate |
| Material | Anodized aluminum |
| Dimensions | 3.4 in x 1.7 in x 1.3 in (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20
