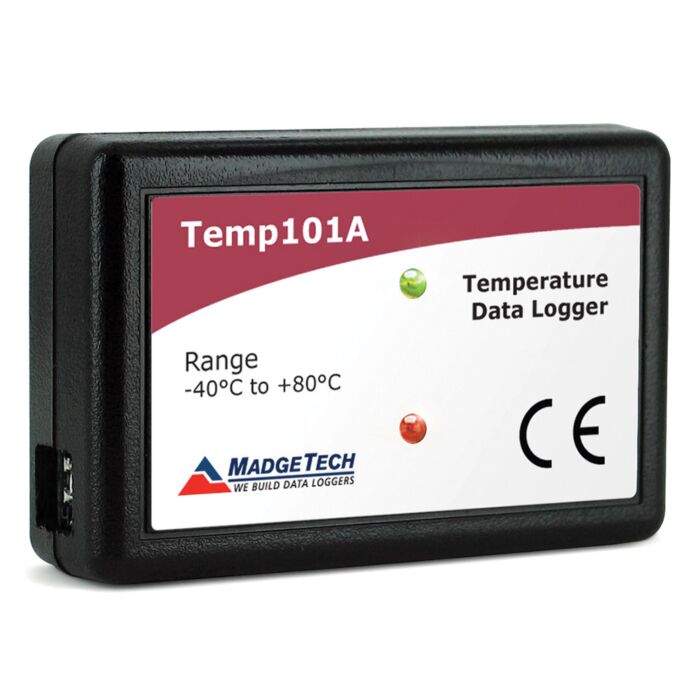

MadgeTech TEMP101A
Temperature Recorder w/a pushbutton start&10 yr battery

Order #: TEMP101A

Mfg #: 901678-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$79.00

MadgeTech TEMP101A

Temperature Recorder w/a pushbutton start&10 yr battery

Order #: TEMP101A

Mfg #: 901678-00

$79.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Temperature Recorder with a pushbutton start and a 10 year battery life

The Temp101A is a compact, general purpose, temperature data logger. Includes ISO17025 accredited calibration certificate.

  • Compact Size
  • 10-Year Battery Life
  • Programmable Alarm Limits
  • .01 °C (.018 °F) Resolution
  • Precision RTD Sensing Element
  • Memory Capacity of 2,000,000+ Readings

The Temp101A is compact temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C.

The Temp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 2,095,104 time and date stamped readings, the Temp101A is perfect for long-term studies.

The Temp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Memory 2,095,104 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Alarm Yes
Baud Rate 115,200
LED Indicators Red & Green
Push-Button Start Yes
Single/Multi-Use Multi-use
Battery Life 10 years typical at a 15 minute reading rate
Material Polycarbonate
Dimensions 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE
Temperature Sensor Precision RTD Element
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.5 °C (±0.9 °F) from -5 °C to 55 °C (23 °F to +131 °F)
±1.0 °C (±1.8 °F) from -40 °C to 80 °C (-40 °F to +176 °F)
