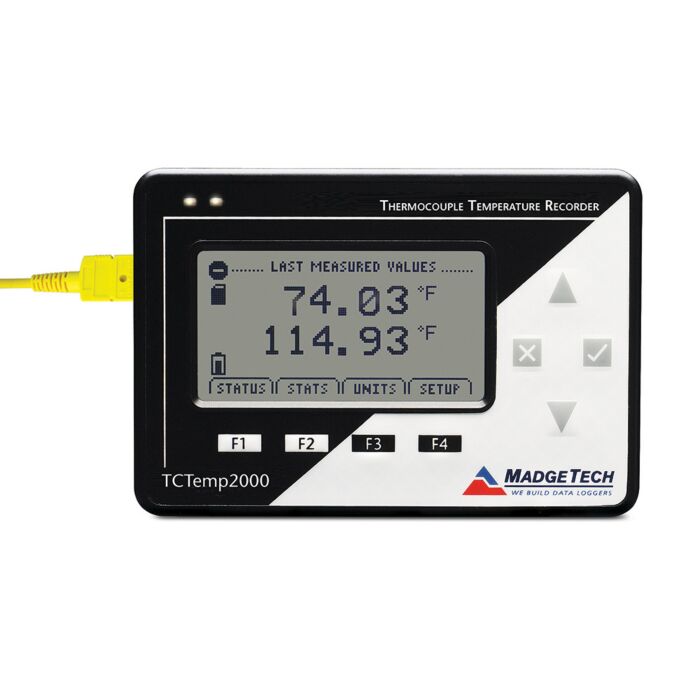

MadgeTech TCTEMP2000 Temperature Recorder with LCD Display&universal power supply

MadgeTech TCTEMP2000

Order # TCTEMP2000

Mfg # 901627-00

call-regular 800-828-1470
$589.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

MadgeTech TCTEMP2000

Order # TCTEMP2000 | Mfg # 901627-00
$589.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Temperature Recorder with LCD Display and universal power supply

The TCTemp2000 is a thermocouple-based temperature data logger with LCD for real-time monitoring. Includes standard calibration certificate.

  • Digital Display
  • Accepts a Variety of Thermocouples
  • Memory Capacity of 262,000+ Readings

The TCTemp2000 is a thermocouple-based temperature data logger with LCD and wall mounted power adapter.

The 8-button keypad and LCD provide convenient access to current statistics (min, max, average), recording status, display options and calibration information. The TCTemp2000 can be programmed to start up to 6 months in advanced with a storage capacity of 262,143 time and date stamped readings.

The TCTemp2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications

Memory 131,071 readings (all channels enabled)
Reading Rate 1 reading every 2 seconds to 1 reading every 24 hours
Baud Rate 262,143 readings
Cold Junction Compensation Automatic, based on internal channel
Battery Life 1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available.
Material Black anodized aluminum
Dimensions 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm)
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE
Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.1 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (0 °C to +50 °C)
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
