MadgeTech PR1000-100-PSIG

Order # PR1000-100-PSIG | Mfg # 902247-00
$699.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

0-100 PSIG Temperature, Pressure & Transient Pressure Data Logger

The PR1000 is a temperature, pressure and transient pressure data logger with an NPT fitting. Includes ISO/IEC 17025 Accredited Certificate.

  • Compact
  • Submersible
  • 1/4 Inch NPT Fitting
  • Available in 10 Measurement Ranges

The PR1000 is a temperature, pressure and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000 PSI.

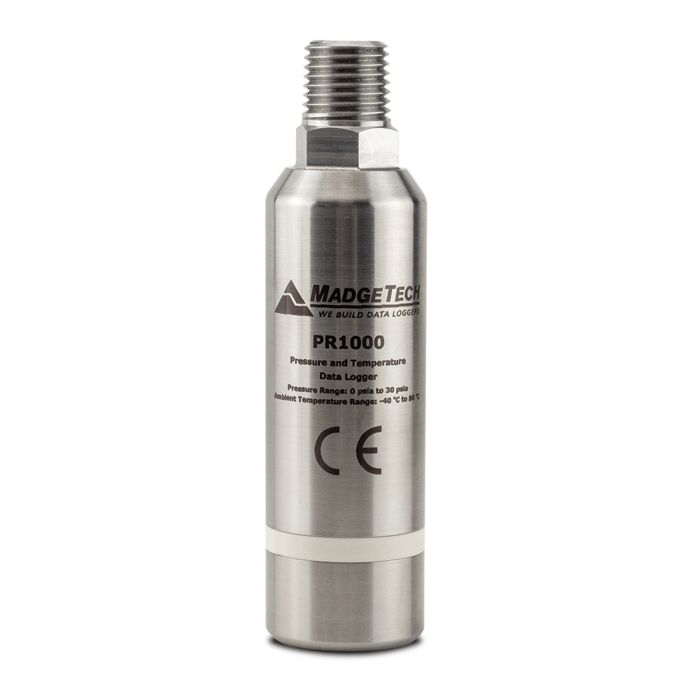

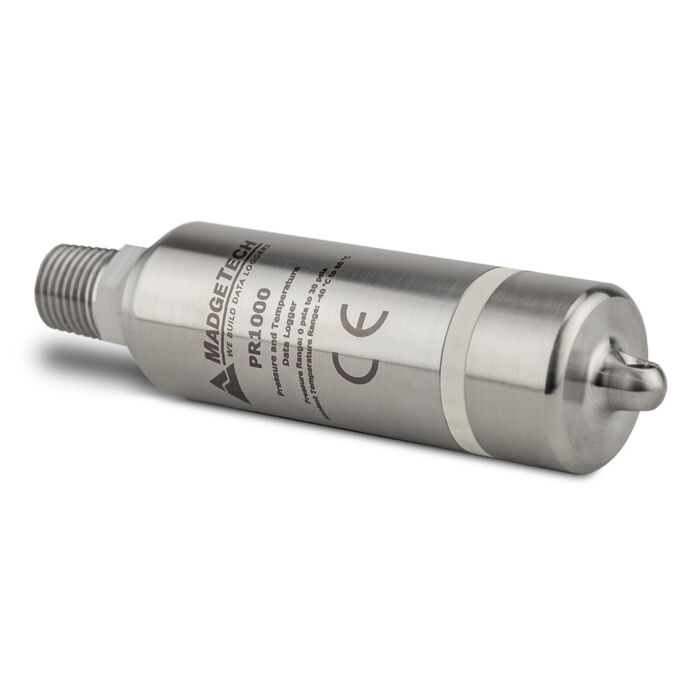

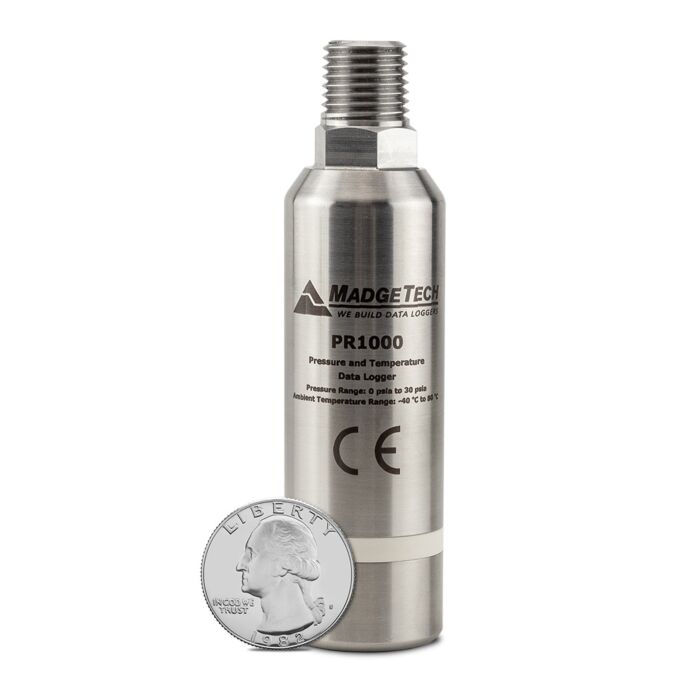

Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a 1/4 inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.

The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications
