MadgeTech LYOTEMP

Order # LYOTEMP | Mfg # 900355-00
$219.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

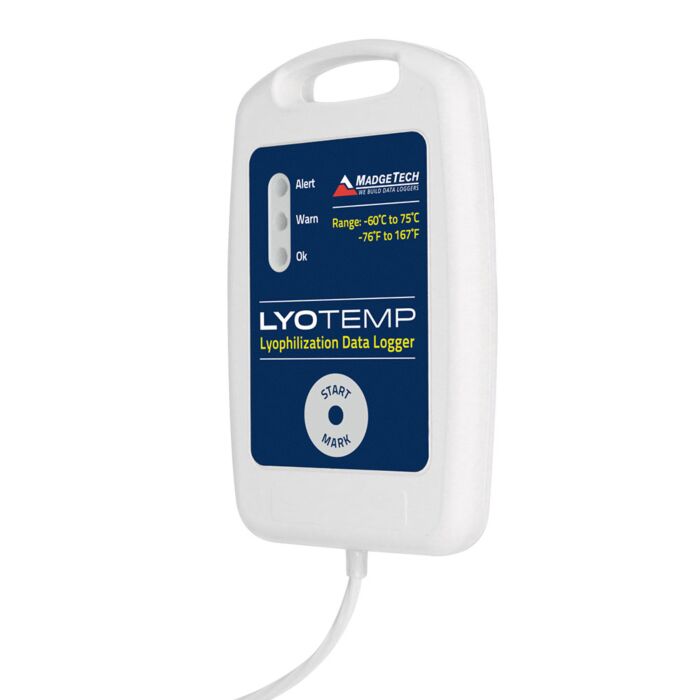

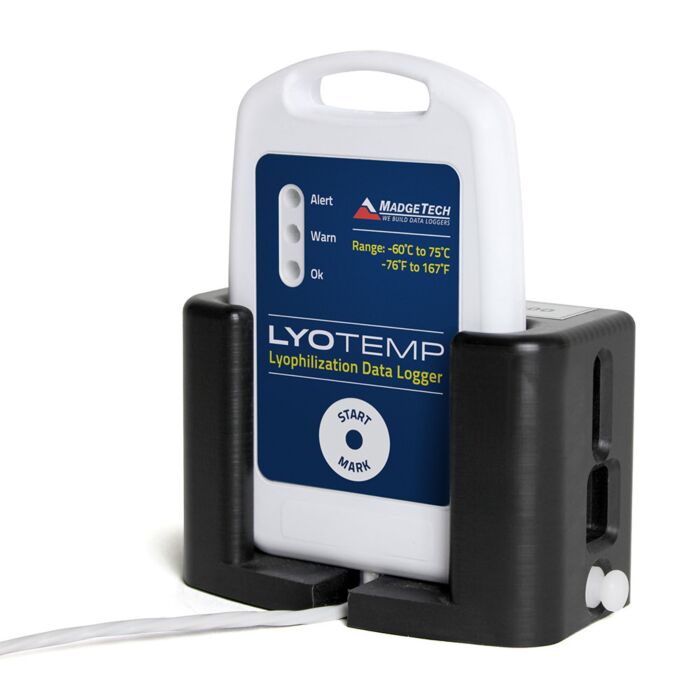

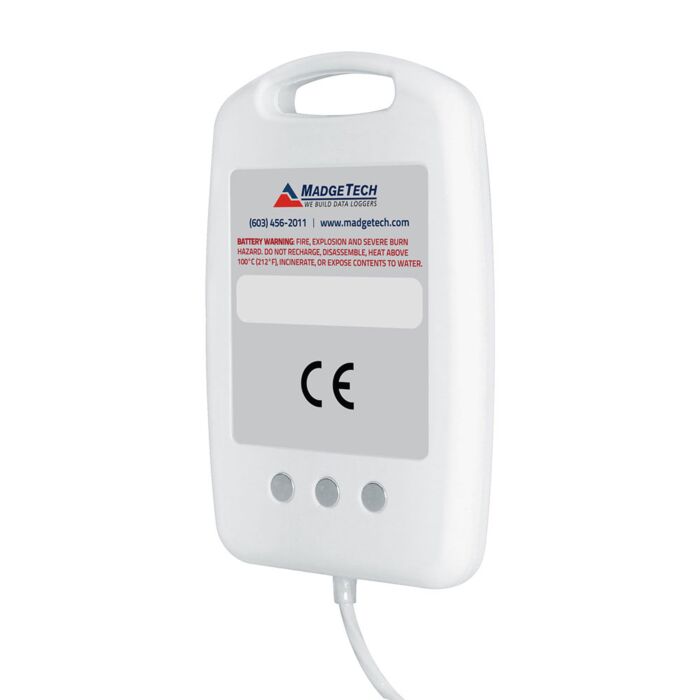

Lyophilization Data Logger

The LyoTemp is an ultra-low temperature data logger, recording temperatures as low as -60 °C (-76 °F). Includes ISO17025 accredited calibration certificate.

  • Compact Size
  • Configurable Alarms & Warnings
  • Hermetically Sealed Temperature Sensor

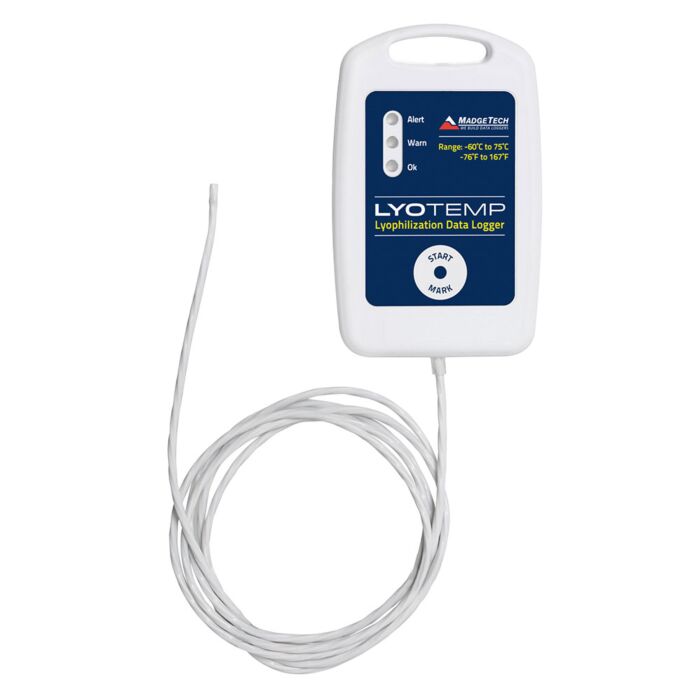

The LyoTemp is an ultra-low temperature data logger with an operating range of -60 °C to +75 °C (-76 °F to +167 °F). Designed with a hermetically sealed temperature sensor with a flexible cable, the LyoTemp is ideal for monitoring products during the lyophilization process.

The LyoTemp provides 32,767 date and time stamped temperature readings with an accuracy of ±0.5 °C. Trusted to monitor critical applications, the LyoTemp is equipped with configurable high/low alarm limits and high/low warning limits to alert users when the temperature near unacceptable levels.

The LyoTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications

Memory 32,767 readings
Reading Rate 1 reading every 5 seconds up to 1 reading every 30 minutes
Single/Multi-Use Multi-use
Battery Life 1 year typical
Material ABS plastic
Dimensions 3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm)
Operating Environment -60 °C to +75 °C (-76 °F to +167 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
Required Interface Package IFC300
Approvals CE
Temperature Sensor Thermistor
Temperature Range -60 °C to +75 °C (-76 °F to +167 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy 0.5 °C
