MadgeTech CURRENTX12-160MA

Order # CURRENTX12-160MA

Mfg # 902197-00

800-828-1470

$1,429.00

MadgeTech CURRENTX12-160MA

Order # CURRENTX12-160MA | Mfg # 902197-00

New

$1,429.00

Ships in 3-4 weeks

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

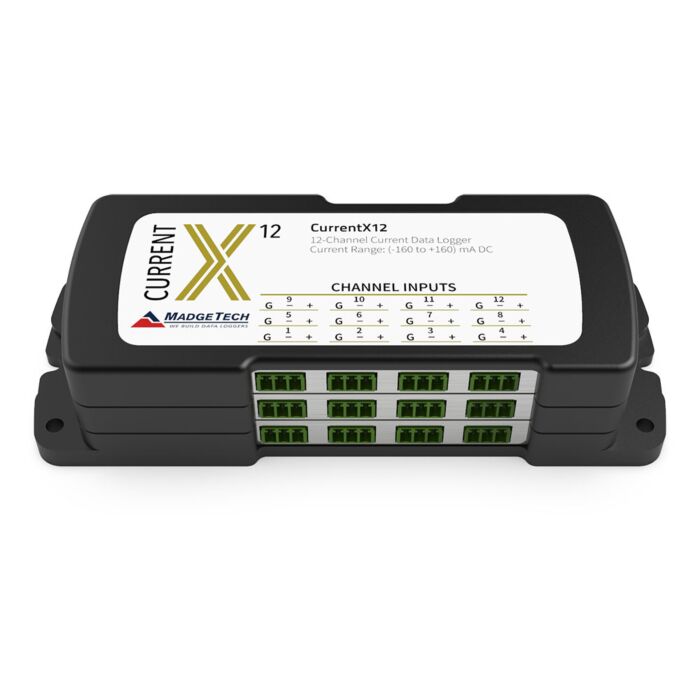

12-channel, low-level DC current data logger w/ 160mA range

Madgetech CurrentX Datasheet
Madgetech CurrentX Product User Guide

Memory	4-channel: 1,048,064 readings per channel
	8-channel: 524,032 readings per channel
	12-channel: 349,354 readings per channel
	16-channel: 262,016 readings per channel (all channels enabled)
Reading Rate	4 Hz to 1 reading every 24 hours
Channels	4, 8, 12, 16
LED Indicators	1 per channel and 2 status LEDs
Battery Life	18 months
Material	Black anodized aluminum
Dimensions	4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm)
	8-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm)
	12-channel: 2.70 in x 7.25 in x 1.68 in (65.6 mm x 184.2 mm x 42.7 mm)
	16-channel: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm)
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
