MadgeTech 900002-00

Order # 900002-00 | Mfg # 900002-00
$3,000.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

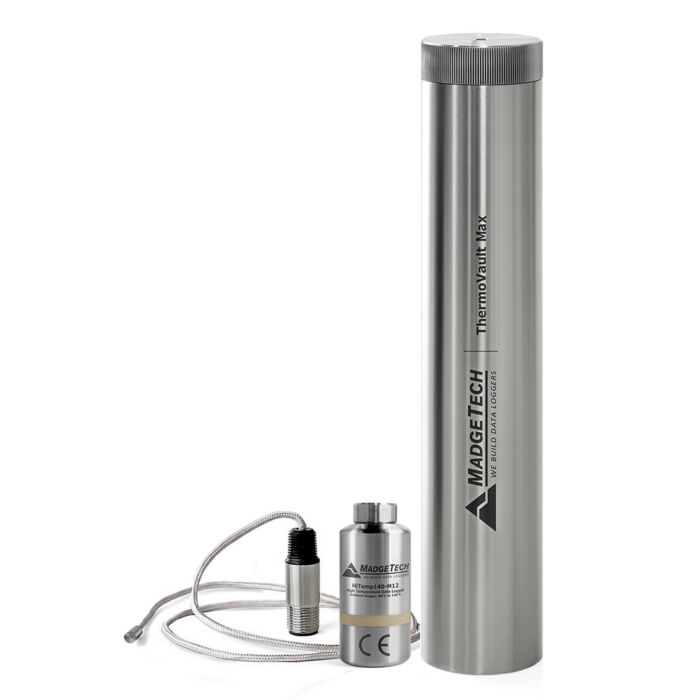

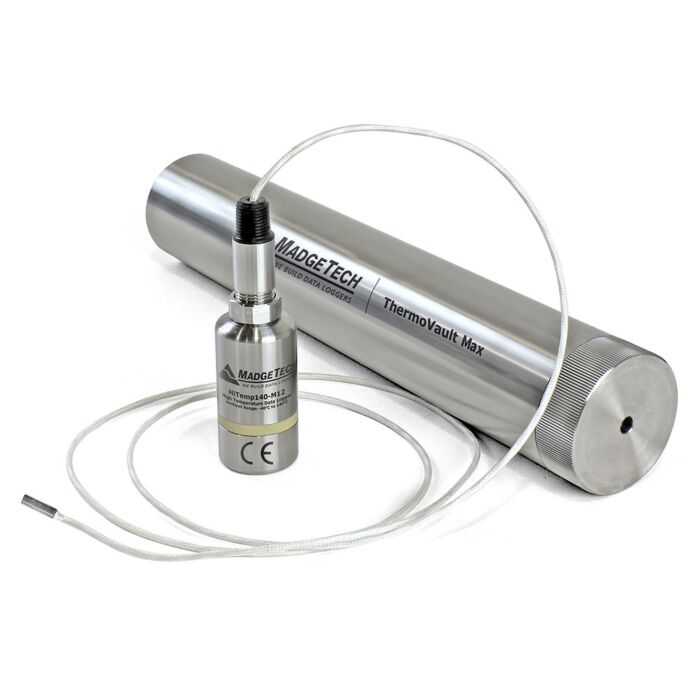

Extreme high temperature enclosure with the HighTemp140-M12 data logger and depyrogenation M12 probe

The DHS is a data logging system for validating dry heat sterilization cycles. Includes standard calibration certificate.

  • HiTemp140-M12 High Temperature Data
  • ThermoVault Max Extreme Temperature Thermal Barrier
  • 36 in. Glass Braided RTD Probe with M12 Connector and Flat Probe Tip

Technical Resources

Specifications

Memory 43,690 readings
Reading Rate 4 readings per second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery
Material 316 Stainless Steel, PTFE, Silicone
Dimensions 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L)
IP Rating This system is not IP rated and is for use in dry applications only
Operating Environment -200 °C to 400 °C %RH to 95 %RH non-condensing
Required Interface Package IFC400 or IFC406
Approvals CE
