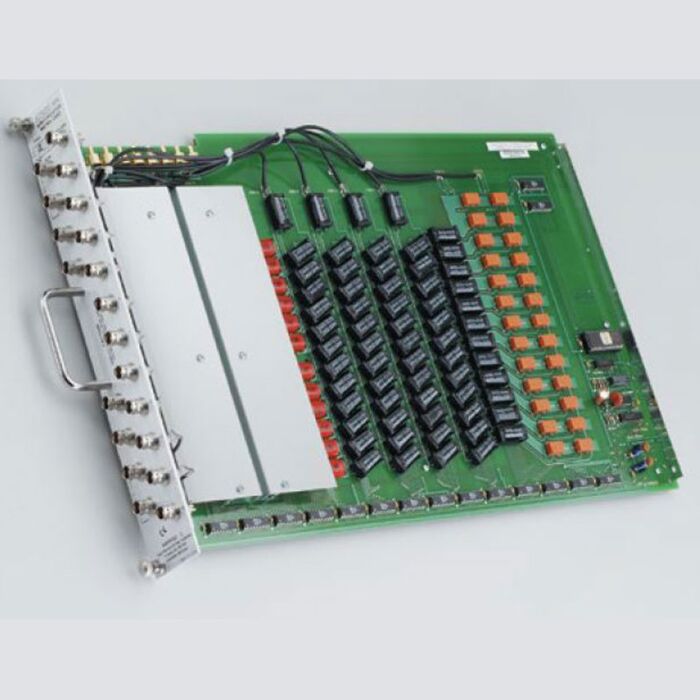

Keithley 7072 8X12 Semiconductor Matrix Card
8X12 Semiconductor Matrix Card
Order #: 7072
Mfg #: 7072
Keithley 7072 8X12 Semiconductor Matrix Card
8X12 Semiconductor Matrix Card
Order #: 7072
Mfg #: 7072
Availability:
This item is no longer available. Please contact Transcat Customer Service
for assistance with alternative product suggestions to meet your exact needs.
Product Highlights
The Model 7072 Semiconductor Matrix Card is designed specifically to handle low-level and high-impedance measurements encountered in semiconductor parametric tests on wafers and devices. This unique design provides two low-current circuits with specified 1pA maximum offset current for sensitive sub-picoamp measurement resolution and two C-V paths for measurement of Capacitance Voltage characteristics from DC to 1MHz. Four additional high-quality signal paths with <20pA offset current provide for general-purpose signal switching up to 100nA or 200V.
- Two 1300V, sub-picoamp current paths
- Six 200V, 20pA paths
- For use with Model 2410 and Model 237 SMU
- 3-lug triaxial connections
- Compatible with Models 707A, 707B, 708A, and 708B
