MadgeTech LEVEL1000 Submersible,30 psia, Level Recorder

Overview

Product Highlights

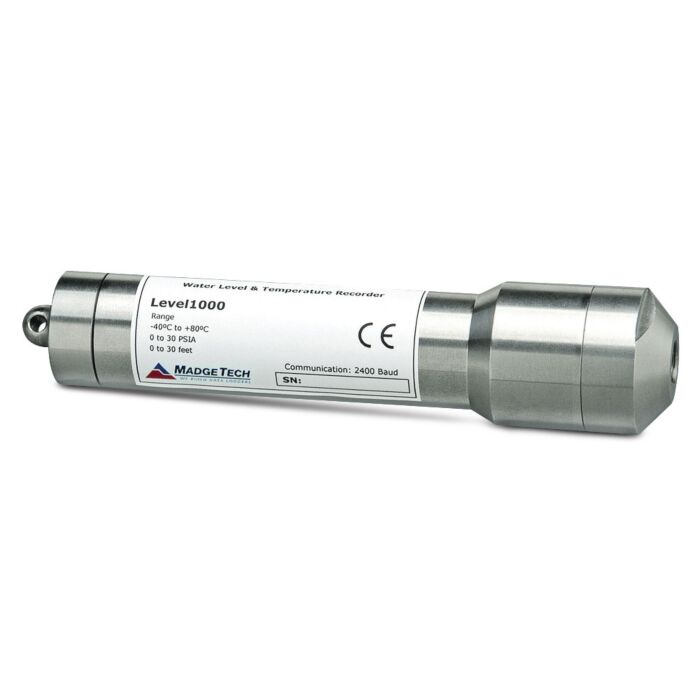

Submersible, 0 to 30 feet, 30 psia, Level Recorder

The Level1000 is a water level and temperature data logger. Includes standard calibration certificate.

Compact Size
Submersible up to 30 Feet
Measures Temperatures from -40 °C to 80 °C

The Level1000 is a water level and temperature data logger submersible up to 30 feet, 30 PSIA. Its compact design allows it to fit almost anywhere, making underwater studies effortless.

The Level1000 can withstand temperatures from -40 °C to 80 °C (-40 °F to +176 °F) and record up to 32,766 readings. The storage medium is non-volatile memory, providing maximum data security even if the battery becomes discharged.

The Level1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Madgetech LEVEL1000 Datasheet
Madgetech LEVEL1000 Product User Guide

Specifications

General
Memory	32,766 readings (all channels enabled)
Reading Rate	1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate	2,400
Battery Life	1 year
Material	303 Stainless Steel
Dimensions	5.7 in x 1.25 in dia.(145 mm x 32 mm)
Submersible	Yes
Operating Environment	-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package	IFC110 or IFC200
Approvals	CE

Temperature
Temperature Sensor	Internal Semiconductor
Temperature Range	-40 °C to 80 °C (-40 °F to +176 °F)
Temperature Resolution	0.1 °C (0.18 °F)
Temperature Calibrated Accuracy	±0.5 °C

Water Level
Pressure Sensor
Nominal Range	0 to 30 ft
Level Resolution	0.05 in
Level Calibrated Accuracy	±8.3 inches of water (1.0 in typical at 25 °C (77 °F) Note: The Level1000 does not compensate for barometric pressure changes, therefore these changes are not included in the accuracy specifications.
