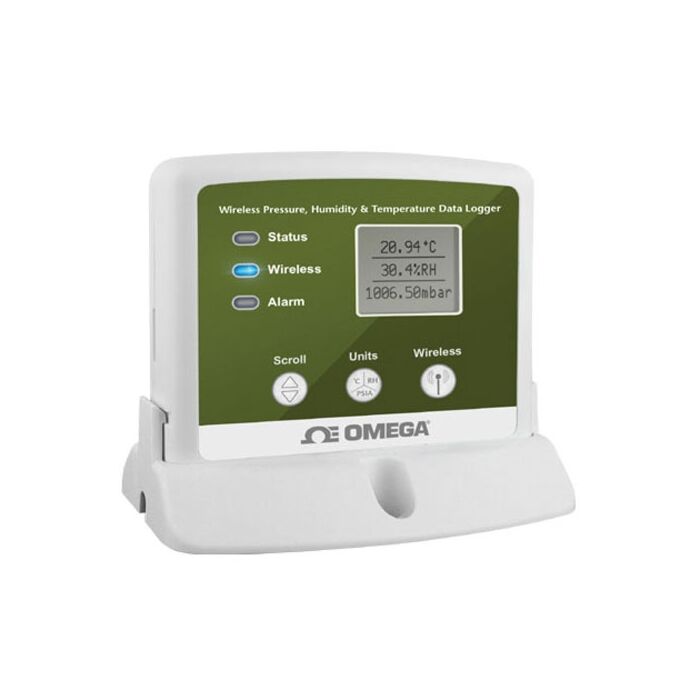

The OM-CP-RFPRHTEMP2000A is a wireless data logger that measures and records ambient pressure, humidity and temperature. This dynamic data logger is ideal for monitoring weather data, measuring barometric pressure in high-rise buildings or monitoring storage or warehouse environments that contain sensitive material. Clinical laboratories and clean rooms can utilize the OM-CP-RFPRHTEMP2000A to measure and maintain critical pressure, humidity or temperature levels, all with one device.
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
Wireless 2-Way Communication
View Data in Real-Time
5-Year Battery Life
Battery Life Indicator
Field Upgradeable
Audible and LED Alarm Indicators
Cumulative Alarm Delay
TEMPERATURE
Range: -20 to 60°C (-4 to 140°F)
Resolution: 0.01°°C (0.02°F)
Calibrated Accuracy: ±0.5°C (±0.9°F) 0 to 50°C (32 to 122°F)
HUMIDITY
Range: 0 to 95% RH
Resolution: 0.1% RH
Calibrated Accuracy: ±3% RH
PRESSURE
Range: 250 to 1300 mbar
Resolution: 0.02 mbar
Calibrated Accuracy: ±10 mbar
WIRELESS
RF Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
Band: ISM band 2.405 to 2.48 GHz (channels 11 through 25) @ 250 kbps data rate
Transmission Distance (to other OM-CP-RFC1000-EXTs:
OM-CP-RFC1000-EXT: 1220 m (4000') max outdoors (line of sight unobstructed); 305 m (1000') max indoors (typical urban environment)
OM-CP-RFC1000-EXT-EUR: 762 m (2500') max outdoors (line of sight unobstructed); 213 m (700') max indoors (typical urban environment)
OM-CP-RFC1000-IP69K: 1220 m (4000') max outdoors (line of sight unobstructed); 305 m (1000') max indoors (typical urban environment)
Transmission Distance (to Data Loggers):
OM-CP-RFC1000-EXT, OM-CP-RFC1000-EXT-EUR, OM-CP-RFC1000-IP69K: 610 m (2000') max outdoors (line of sight unobstructed); 152 m (500') max indoors (typical urban environment)
GENERAL
Reading Rate: One reading every second up to one every 24 hours
Memory: 10,752 readings per channel
LED Functionality
Green LED: Blinks every 5 seconds to indicate unit is logging
Blue LED: Blinks every 15 seconds to indicate unit is in wireless mode
Red LED: Blinks every 1 second to indicate alarm condition
Memory Wrap Around: Yes
Start Modes: Immediate start and delayed start
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 9V lithium battery (included); user replaceable
Battery Life: 5 years typical at 15 minute reading rate
Data Format (Display and Software): Date and time stamped °C, °F, °R, K for the temperature channel, %RH, mg/mL, dew point for the humidity channel and mbar, PSI, inHg, mmHg, atm, Torr, Pa, m, kPa, MPa for the pressure channel.
Time Accuracy: ±1 minute/month
Computer Interface: USB to mini USB, 250,000 baud for stand-alone operation or OM-CP-RFC1000-EXT required for wireless operation
Software: Windows XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -20 to 60°C (-4 to 140°F), 0 to 95% RH non-condensing, 0.002 to 100 psia
Dimensions: 76.2 H x 88.9 W x 24.1 mm D (3.0 x 3.5 x 0.95") data logger only
Weight: 139 g (4.9 oz)
Enclosure Material: ABS plastic
Alarm: User configurable audible, on-screen, email and text (SMS) alarms.
Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data.
Audible Alarm Functionality: 1 beep per second for reading alarm above/below threshold
