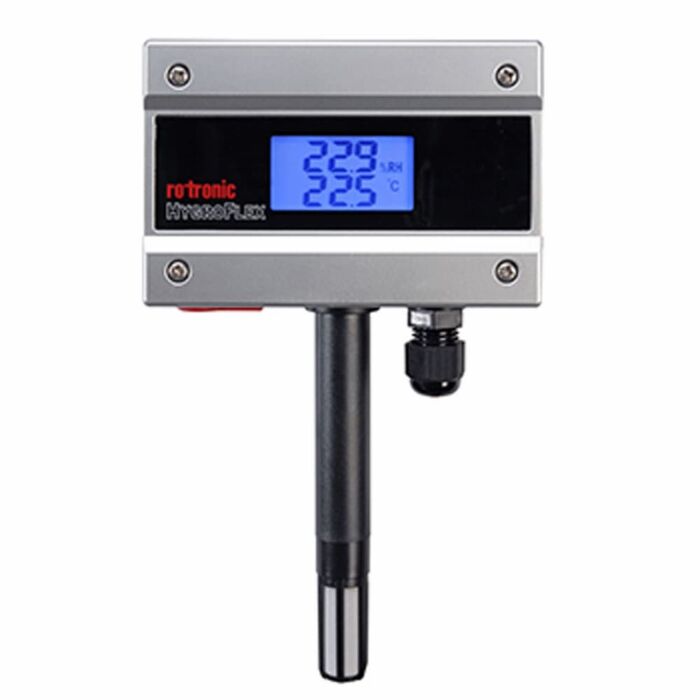

Rotronic HF132-WB1XD1XX Temperature Transmitter 40 to 15V, Wall Mount

The Rotronic HF132-WB1XD1XX is a wall-mounted digital humidity and temperature transmitter from the HygroFlex1 series. It features an integrated blue backlit LCD display, a 3-wire 4-20 mA analog output, an IP65-rated ABS housing, and an operating range of -20 °C to 50 °C with 0-100% RH humidity detection.

• Mounting Type: Wall mount
• Display: Included with blue backlight
• Output Signal: 3-wire, 4-20 mA current output
• Humidity Range: 0 to 100% RH (non-condensing)
• Temperature Range: -20 °C to 50 °C (Standard scale 0-50 °C)
• Accuracy: <±2% RH (10-90% RH)
• Power Supply: 15 to 40 VDC / 12 to 28 VAC
• Housing Protection: IP65 ABS plastic

Applications

• Heating, Ventilation, and Air Conditioning (HVAC) systems
• Clean rooms and critical environments
• Building Management Systems (BMS)
• Indoor air quality and environmental monitoring

Each Unit Includes

• Temperature Transmitter 40 to 15V, Wall Mount (HF132-WB1XD1XX)
