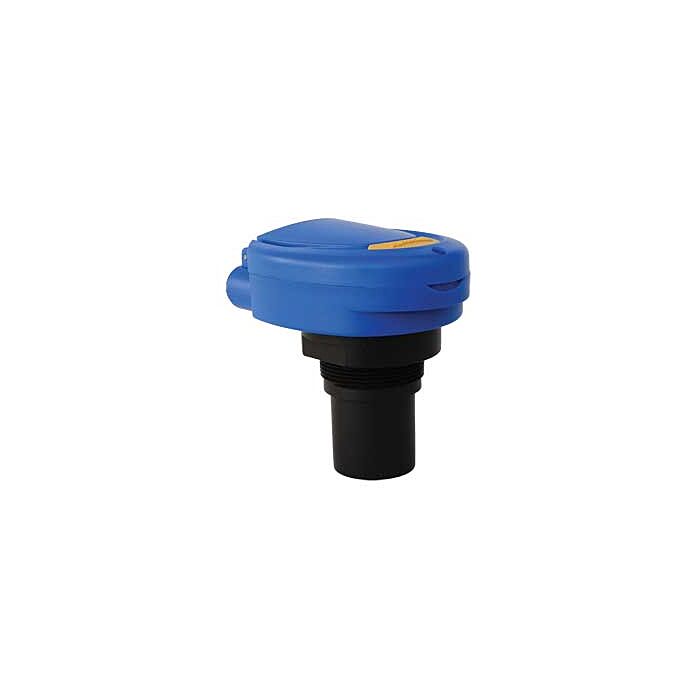

Flowline LU83-5101

Product Highlights

• Configuration is simple via integral push button display module
• LCD display indicates level in inches, centimeters and percentages
• Narrow 3” beam width for applications with limited measurement space
• Fail-safe intelligence and diagnostic feedback for simple troubleshooting
• PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids
• Range: LU83: 8" to 26.2' (20cm to 8m)
• Accuracy: ± 0.2% of range
• Resolution: 0.039" (1mm)
• Dead band: 8" (20cm)
• Beam width: 3" (7.6cm)
• Configuration: Push button
• Memory: Non-volatile
• Display type: LCD, 6-digit
• Display units: Inch, cm and percent
• Supply voltage: 12-28 VDC
• Loop resist.: 500 Ohms @ 24 VDC
• Signal output: 4-20 mA, two-wire
• Signal invert: 4-20 mA, 20-4 mA
• Signal fail-safe: 4mA, 20mA, 21mA, 22mA or hold last
• Process temp.: F: -4° to 140°/C: -20° to 60°
• Temp. comp.: Automatic
• Ambient temp.: F: -31° to 140°/C: -35° to 60°
• Pressure: MWP = 30 psi (2 bar)
• Enclosure rating: NEMA 4X (IP65)
• Encl. material: Polycarbonate
• Encl. hardware: Brass & stainless
• Enclosure vent: Water tight membrane
• Conduit entrance: Dual, 1/2" NPT
• Trans. material: PVDF
• Process mount: 2" NPT (2" G)
• Mount gasket: Viton®
• Classification: General purpose
• Compliance: CE, RoHS

Each Unit Includes

• Ultrasonic Level Transmitter
• QuickStart Guide
