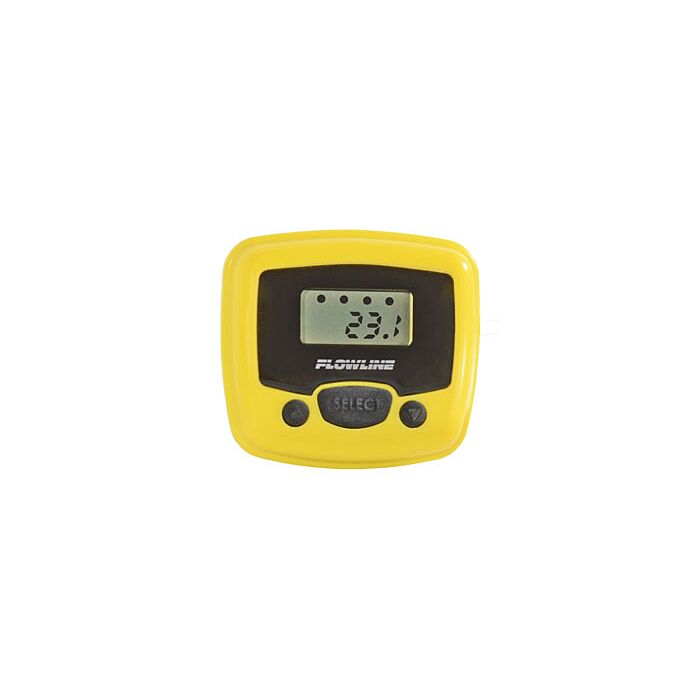

Flowline LI40-1001

Product Highlights

• Indicates tank level or volume and relay status
• Enables EchoPod relay set point changes in the field
• Powered directly by the attached EchoPod sensor
• Repeats EchoPod sensor data with no programming
• Corrosion resistant enclosure with NEMA 4 faceplate
• Display type: LCD, 6-digit with 4 relay indicators
• Display units: Engineering
• Display output: -99999 to 999999
• Character height: 0.374" (9.5mm)
• Decimal point: Fixed
• Dot indication: Relay status
• User interface: Three button
• Sensor input: (1) EchoPod sensor
• Supply voltage: Provided by EchoPod
• Operating temp.: F: -4° to 140°C: -20° to 60°
• Cable type: 4-conductor, #22 AWG
• Cable length: 6' (1.8m)
• Cable jack. mat.: Polyurethane
• Enclosure rating: Nema 4 (IP65) faceplate
• Enclosure mat'l: Polycarbonate
• Enclosure type: Panel mount
• Button material: Silicon rubber
• Classification: General purpose
• Compliance: CE (pending)
