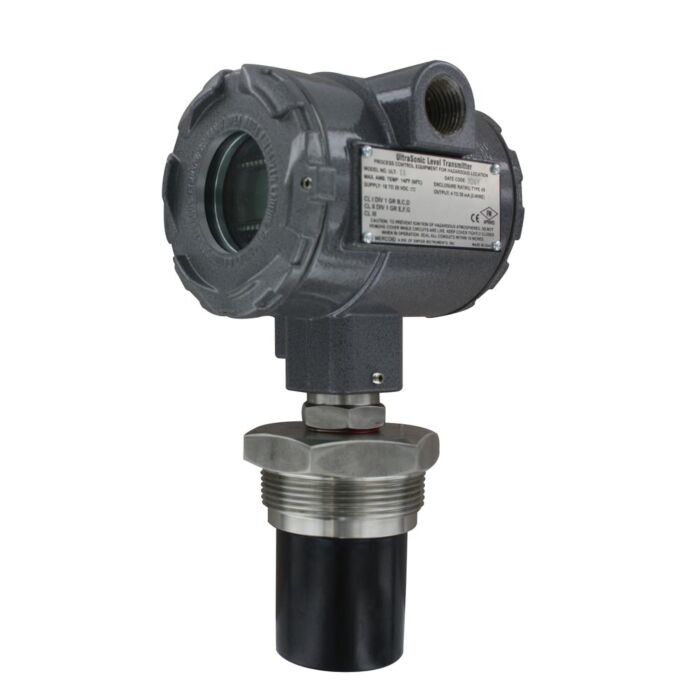

Dwyer Instruments ULT-12
Ultrasonic Level Transmitter 7.5 m range, M20 conduit CXN

Order #: ULT-12

Mfg #: ULT-12

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,852.00

Dwyer Instruments ULT-12

Ultrasonic Level Transmitter 7.5 m range, M20 conduit CXN

Order #: ULT-12

Mfg #: ULT-12

$1,852.00

Series ULT Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. Mapping software makes effective measuring surface only a 3" diameter column. No concerns with ladders, pipes, or other tank intrusions in the remaining sound cone. Unit is FM approved explosion-proof making it ideal for use in hazardous locations. The ULT features easy programming with 6 digit LCD display and simple menu structure. Output range is adjustable with choices of inputting tank dimensions or just fill and empty the tank while calibrating and it automatically scales to levels it senses. Window cover allows early viewing of display. Fail-safe output options and diagnostic capabilities makes the ULT a good choice for critical applications.

Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • 7.5 m (24.6') range
  • explosion-proof
  • 2" BSPT male process connection
  • M20 conduit connection
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
All products in this series
