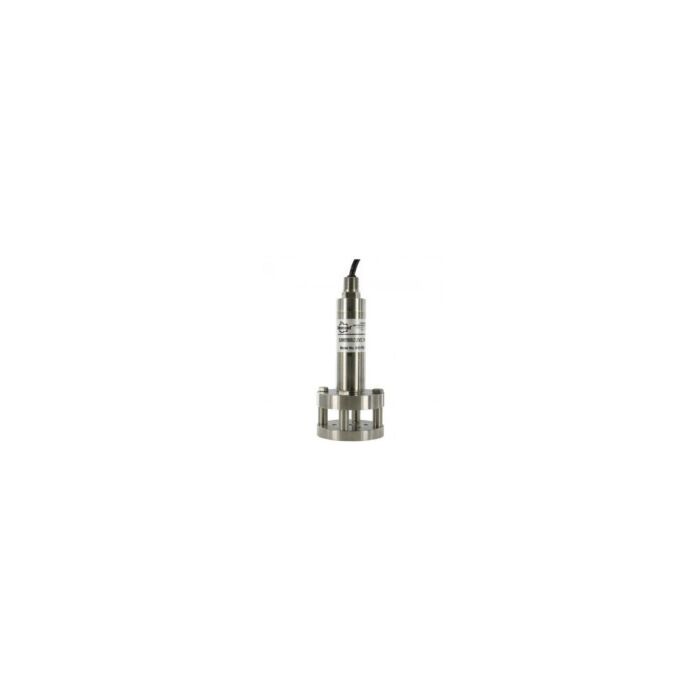

Dwyer Instruments PBLT2-10-40-PU Submersible Level Transmitter, 40 ft cable length

The Series PBLT2 & PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. This Series measures the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing with cage and large diameter 316 SS diaphragm seal.

• Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
• Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
• Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
• Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
• Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
• Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
• Minimal downtime with standard 72 hour lead time

• Accuracy: ± 0.25 %
• Accuracy Detail: ± 0.25% FS (includes linearity, hysteresis, and repeatability)
• Applications: Chemical Refineries, Chemicals, Oil
• Cable Length: 40 ft
• Compensated Temperature, Max: 180 °F
• Compensated Temperature, Min: 0 °F
• Compliance: CE, UKCA
• Electrical Connection: Pigtail Leads
• Electrical Output: 4 to 20 mA
• Loop Resistance: 900 Ω
• Material Construction Option: Polyether Polyurethane cable jacket
• Materials, Wetted: Fluoroelastomer, Polyether, Polyurethane, Stainless Steel
• Measurement Pressure, Max: 10 psi
• Media Compatibility: Consult Factory
• Mounting: Suspended in Tank Below Level Being Measured
• Operating Temperature, Max: 200 °F
• Operating Temperature, Min: 0 °F
• Output Detail: 4 to 20 mA DC, 2-wire
• Output Signal: Current
• Proof Pressure: 2x Full Scale
• Protection: Lightning And Surge Protection
• Response Time: 50 ms
• Supply Power Type: DC
• Supply Voltage: 13 to 30 Vdc
• Thermal Effect: ± 0.02% FS/°F
• Weight: 4.3 lb

Applications

• Wastewater
• Sludge pits, clarifiers, digesters
• Alum tanks
• Chemical storage tanks
• Oil tanks
• Lime slurry
• Sumps
• Reservoirs

Each Unit Includes

• 1 - Submersible Level Transmitter (PBLT2-10-40-PU)
