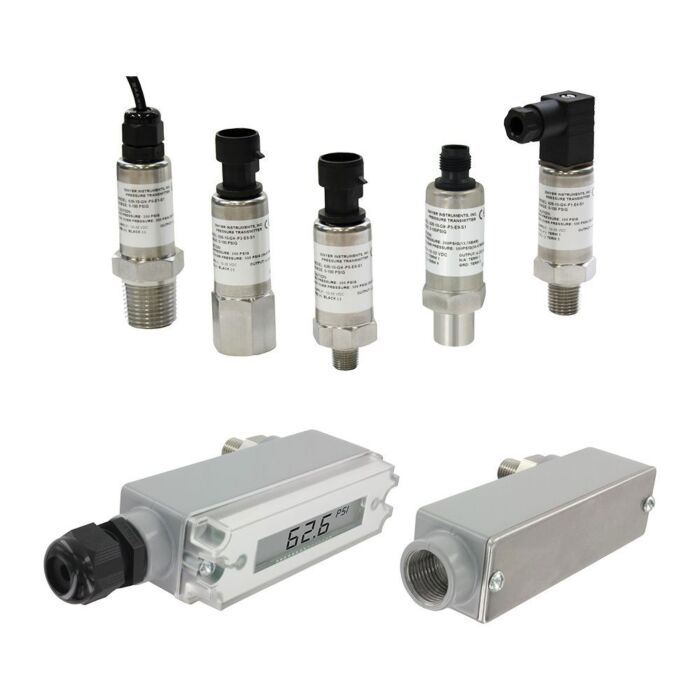

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
4 to 20 mA, 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC;
or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option
Response Time
300 ms
Loop Resistance
0-1000 Ω max. R max = 50 (Vps-10) Ω (4-20 mA output);
5 KΩ min (0-5, 1-5, 0.5-4.5 VDC output);
15 KΩ min (1-6, 0-10, 2-10 VDC output)
Current Consumption
38 mA maximum (for 4 to 20 mA output);
10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output);
140 mA maximum (for all 626/628/629-CH with optional LED)
Electrical Connections
Model dependent options: Wire end, Hirschman DIN EN 175801-803-C, Packard, Deutsch, M12
Process Connection
Model dependent options: 1/8", 1/4", 1/2" male NPT; 1/4" female NPT; 1/4" male or female BSPT; 1/8" or 1/4" male BSPP ISO 1179; 1/4" female SAE valve depressor
