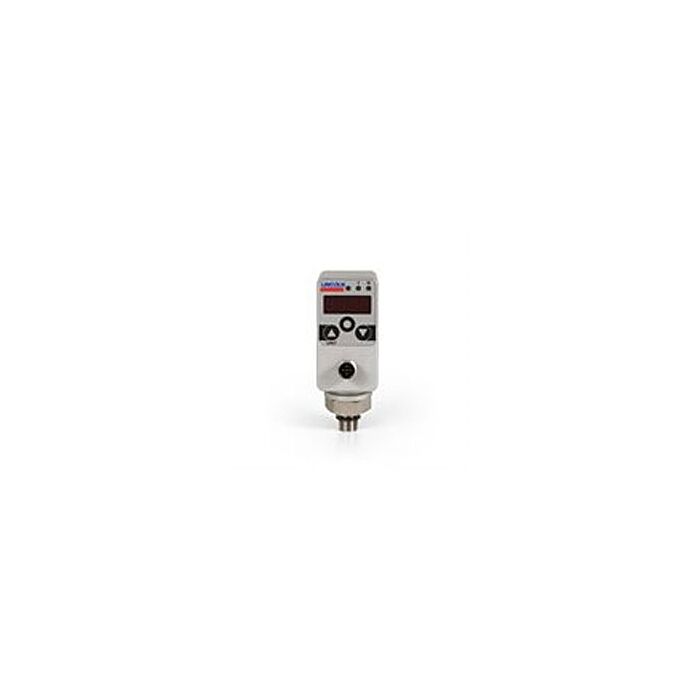

Lincoln Industrial 234-10330-4

Digital Pressure Switch for Single-line Lubrication Systems

Order #: 234-10330-4

Mfg #: 234-10330-4

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $440.42 Regular Price $587.23

Lincoln Industrial 234-10330-4

Digital Pressure Switch for Single-line Lubrication Systems

Order #: 234-10330-4

Mfg #: 234-10330-4

Special Price $440.42 Regular Price $587.23
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions

Choose Your Options:

Add Accredited Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate?

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Menu-guided adjustments via 3 push buttons indicating status of outputs
  • Peak value storage
  • Adjustable hysteresis and absorption
  • Programmable parameters
  • Password protected
  • Reverse polarity and overvoltage protected; short-circuit proof
  • Function principle digital pressure switch
  • Lubricant oil and fluid grease: NLGI 000, 00, 0 grease: NLGI 1, 2
  • Operating temperature –20 to +85 °C –4 to +185 °F
  • Operating pressure max. 1000 bar max. 14500 psi
  • Operating voltage 15–30 V DC, nominal 24 V DC
  • Signal output type PNP-Transistor
  • Switching current max. 0,7 A
  • Current consumption < 100 mA
  • Output signal 0/4–20 mA, apparent ohmic resistance ≤500 Ω
  • Switching cycle ≥ 20 Mio.
  • Material Housing stainless steel 1.4404, NBR Control panel zinc die casting, surface treated
  • Electrical connection M12 × 1; 5 pin
  • Protection class IP 67
  • Pressure port G 1/4 (BSPP)
  • Dimensions 39,5 × 105,5 × 46,3 mm 1.55 × 4.15 × 1.82 in
  • Mounting position any
