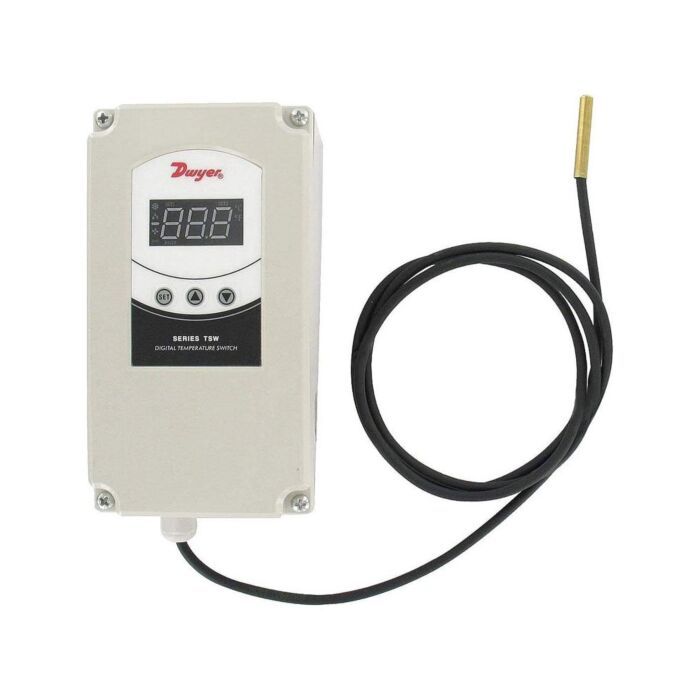

Dwyer Instruments TSW-150 Weatherproof Digital Temperature Switch, 90-255 VAC

The Series TSW Weather Proof Digital Temperature Switch combines the trusted, reliable TS family of temperature controls and an installation friendly weatherproof enclosure. The bright, easy-to-read LED display shows the current output status and the temperature measurement.

• Weatherproof housing
• Single or dual stage models
• Configuration key
• Physical and passcode parameter setting protection

• Accuracy: ± 1 %
• Additional Features 1: TS-8T Temperature Probe Included
• Compliance: CE, cURus
• Control Type: On/Off
• Display Color: N/A
• Display Note: 3-digits plus sign
• Display Type: 3 Digit LED
• Enclosure Ratings: IP65, NEMA Type 4X
• Horsepower Rating: 2 hp @ 240 Vac
• Input Type: Thermistor
• Memory Backup: Non-Volatile
• Number of Stages: 1
• Operating Temperature, Max: 104 °F
• Operating Temperature, Min: 32 °F
• Output Detail: Relay
• Power Consumption: 3.6 VA
• Scale: N/A
• Sensor Type: Thermistor
• Supply Power Note: 90 to 255 Vac ±10%
• Supply Power Type: AC
• Supply Voltage: 90 to 255 Vac
• Switch Note: R1 SPDT relay resistive load: 20 A @ 240 VAC; R2 SPDT relay resistive load: 8 A @ 240 VAC; Inductive load: 3 A @ 240 VAC
• Switch Rating: R1: 20 A @ 240 Vac; R2: 8 A @ 240 Vac; 3 A @ 240 Vac
• Switch Type: (2) SPDT
• Temperature Measurement Range: PTC: -50 to 150 °C, NTC: -50 to 110 °C
• Temperature Probe Style: TS-8T Temperature Probe Included
• Temperature Resolution: 1 °F
• Weight: 1.2 lb

Applications

• Chillers
• Walk in cooler
• Woodboilers
• Brewing systems

Each Unit Includes

• 1 - Weatherproof digital temperature switch (TSW-150)
