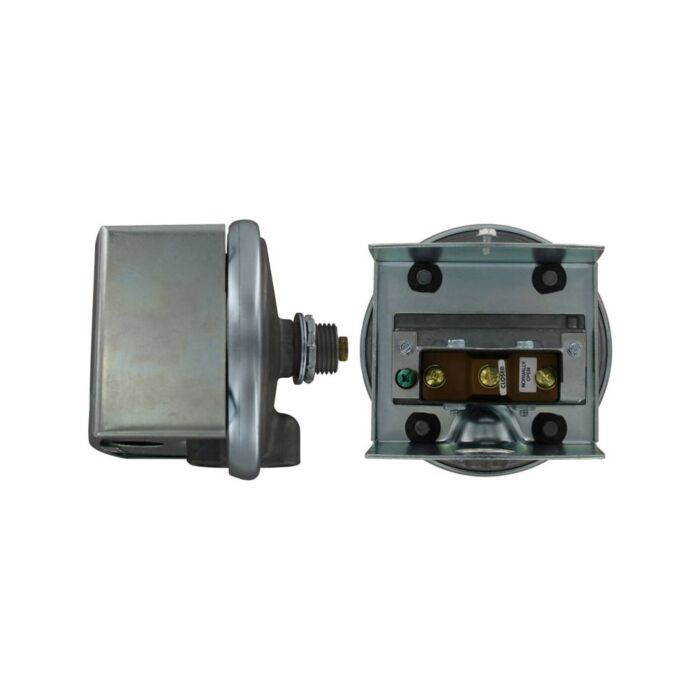

Differential pressure switch, range 0.07-0.22" w.c., approx. deadband @ min. set point 0.05, approx. deadband @ max. set point 0.05.
Essential for industrial environments, the Series 1800 Low Differential Pressure Switch for General Industrial Service combines small size and low price with 2% repeatability for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting the switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved.
- Compact size and repeatability provide a high-value switch useful in many industrial applications
- Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings
- Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications
- Applications: Industrial and Manufacturing, Process Automation and Control
- Compliance: CE, CSA, FM, UL
- Compliance Note: CE, CSA, FM, UL. Optional-EXPL explosion-proof enclosure does not possess any compliance
- Deadband: 0.05 inH2O
- Electrical Connection: Screw Terminal
- Materials, Wetted: Consult Factory
- Measurement Pressure Type: Differential
- Measurement Pressure, Max: 0.22 inH²O
- Measurement Pressure, Min: 0.07 inH²O
- Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
- Mounting Orientation: Vertical Diaphragm
- Operating Temperature, Max: 180 °F
- Operating Temperature, Min: -30 °F
- Process Connection Size: 1/8 in
- Process Connection Type: NPT Female
- Proof Pressure: Up to 10 psi
- Repeatability: ± 2%
- Set Point Adjustment: Internal Screw
- Switch Note: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4 HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates
- Switch Rating: 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac
- Switch Type: SPDT NO/NC, Selectable
- Weight: 595 g
Applications
- Process applications
- Mechanical equipment control
