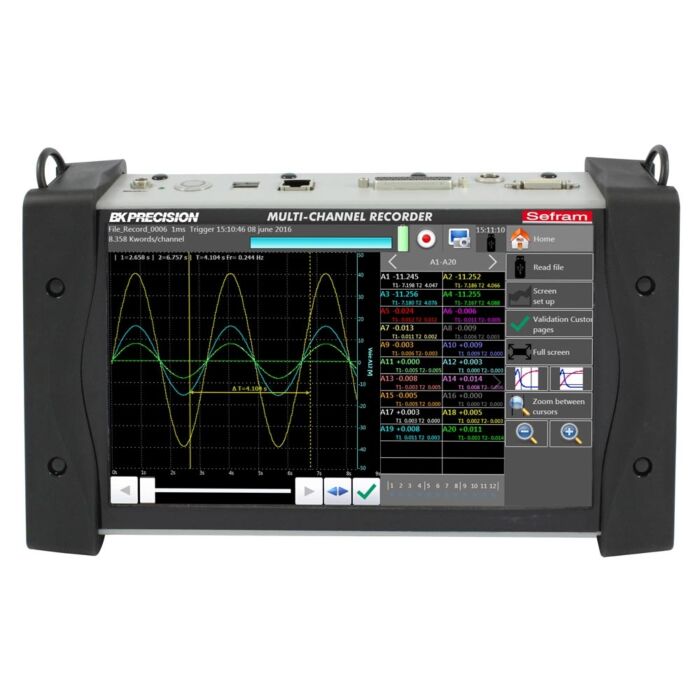

BK Precision DAS240-BAT

The DAS240-BAT measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 20 universal analog channels with convenient screw input terminals that can be expanded up to 200 channels. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of recorders, field strength meters and other test and measurement instruments.

Measurement results can be viewed graphically and numerically on a 10 inch color touch screen and saved to internal memory or an external USB memory stick. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC.

Product Highlights

• Compact and portable form factor suitable for remote and field use
• Outstanding battery life of up to 15 hours
• Wide 10” touchscreen TFT display
• 20 universal analog input channels, expandable to 200 channels
• Versatile temperature measurements supporting 9 types of thermocouples and 2 or 3-wire Pt100 / Pt1000 temperature sensors
• Measure voltage to ±100 V, resistance to 10 kOhm and current (with optional shunt input-terminal block)
• 32 GB internal hard drive
• 2 USB Host ports and 1 LAN interface
