Control Company 6530
Traceable Digital Barometer 500-1030mBar, 0-55C

Order #: 6530

Mfg #: 68000-49

Questions about availability or need help? Contact Us:

(800) 633-0561
$189.00

Control Company 6530

Traceable Digital Barometer 500-1030mBar, 0-55C

Order #: 6530

Mfg #: 68000-49

$189.00
Digital Barometer is the perfect unit for plants, labs, and all other environments where there is a need to monitor conditions of environmental air parameters.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

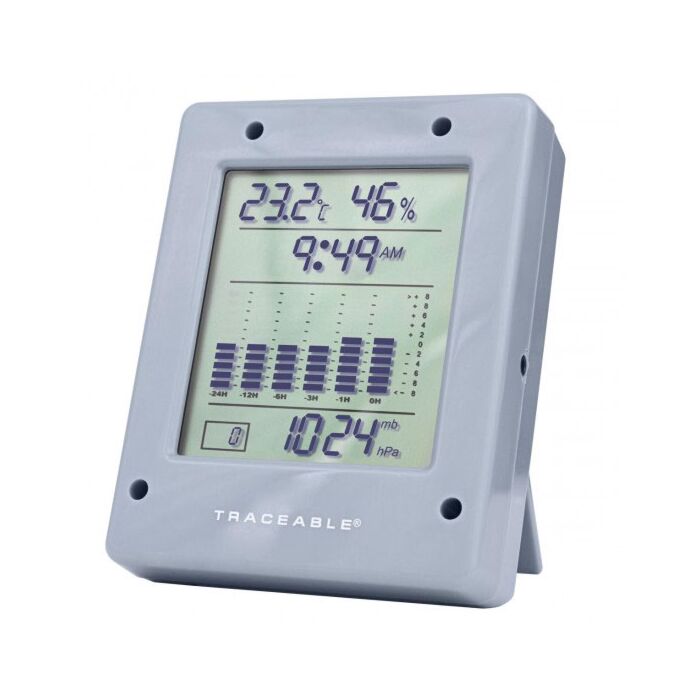

A four-line LCD continuously and simultaneously shows barometric pressure, temperature, relative humidity, barometric pressure trend and time-of-day. Minimum\Maximum readings for barometric pressure, temperature and relative humidity are stored every hour for the last 24 hours and are available for recall at the touch of a button. HI/LO alarms can be set for barometric pressure, temperature, and relative humidity.

MEASURING RANGES

Barometric pressure range from 500 to 1030 millibars (mbar) with a resolution of 1 mbar. Accuracy is ±4 mbar. Barometric pressure trend shows in bar-chart format the current and past 1-, 3-, 6-, 12-, and 24-hour readings. Switching permits viewing in milibars (mbar), inches of mercury (inHg), or hectopascals (hPa). Altitude compensation is –100 to 2500 meters.

Temperature range is 32 to 131ºF and 0 to 55ºC. Resolution is 0.1° and accuracy is ±0.4°C. Relative humidity range is 5 to 95%. Resolution is 1% RH and accuracy is ±3% RH between 5 to 75%, otherwise ±5% RH.

Computer output allows unit to be connected to a computer using the accessory Computer Data Acquisition System to permanently capture readings.

TRACEABLE® CERTIFICATE

Multi-point calibration on an individually-numbered Traceable® Certificate which assures accuracy from our ISO/IEC 17025:2005 (1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.

Product Highlights

  • A four-line LCD continuously and simultaneously shows barometric pressure, temperature, relative humidity, barometric pressure trend and time-of-day.
  • Minimum\Maximum readings for barometric pressure, temperature and relative humidity are stored every hour for the last 24 hours and are available for recall at the touch of a button.
  • Computer output allows unit to be connected to a computer using the accessory Computer Data Acquisition System to permanently capture readings.
  • Size: 4 x 3 x 1 inches. Weight: 7 ounces

Each Unit Includes

  • Traceable® Certificate
  • wall mount
  • flip open stand and batteries
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Temperature Range 32 to 131ºF and 0 to 55ºC
Temperature Resolution 0.1°
Temperature Accuracy ±0.4°C
Humidity Range 5 to 95% RH
Humidity Resolution 1% RH
Humidity Accuracy ±3% RH between 5 to 75%, otherwise ±5% RH
Barometric Press. Range 500 to 1030 millibars (mbar)
Barometric Press. RES 1 mbar
Barometric Press. Accuracy ±4 mbar
Temp MIN/MAX Memory Y
Data Logging Y
Exportable Data (Y/N) Y
Supplied With Traceable® Certificate, wall mount, flip open stand and batteries
